NGK Competition R7437-9 (x4) Angled Ground Spark Plug Set of 4 - 1.8 2.0 TSI EA888 Gen3 (IS38) 2.5 TFSI DAZA DNWA DNWC

Upgrade your engine's ignition performance with NGK Racing Spark Plugs, specifically engineered for highly modified Stage 1, Stage 2, and racing applications. These plugs are designed to handle significantly higher thermal stress than standard stock units, ensuring consistent firing under extreme cylinder pressures and temperatures. Constructed with precious metal electrodes, they provide superior durability and ignitability for enthusiasts demanding the most from their powerplants.

Key Performance Features

• Iridium Center Electrode: Provides a high melting point and extreme durability against spark erosion in high-boost environments.
• Colder Heat Range: Specifically "8" and "9" ranges designed to dissipate heat rapidly, preventing pre-ignition and engine knock.
• Self-Cleaning Technology: Engineered to maintain a firing tip temperature between 500°C and 800°C to prevent carbon fouling.
• Racing Grade Construction: Resists the mechanical and thermal shocks common in competitive motorsport and track use.
• Slant Ground Electrode: Improves flame expansion and reduces quenching for a more complete combustion cycle.

Choose Your Heat Range

Selecting the correct heat range is vital for engine longevity. Ambient temperatures and tuning stages dictate whether the R7437-8 or R7437-9 is best for your setup.

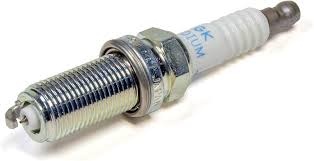

NGK R7437-8

Ideal Ambient: -5°C to 20°C. Best for Stage 1 or Stage 2 modified engines (like the EA888 Gen3) with an enthusiastic driving style. Maintains optimal cleaning temps in cooler climates.

NGK R7437-9

Ideal Ambient: 10°C to 40°C. Recommended for Stage 2+ or extreme racing use. This colder plug handles intense internal heat but may foul if used for short street trips or idling in cold air.

Environmental & Tuning Impacts

• Ambient Conditions: Denser, cold air can lead to leaner mixtures and higher cylinder temps, requiring careful monitoring of the "8" or "9" range to avoid fouling or overheating.
• Humidity: High humidity acts as a cooling agent; in these cases, a slightly "hotter" plug setup may be required to prevent carbon buildup.
• Tuning Level: Always match the heat range to your specific ECU calibration and boost levels to ensure the tip stays within the 500°C–800°C window.

Compatibility & Applications

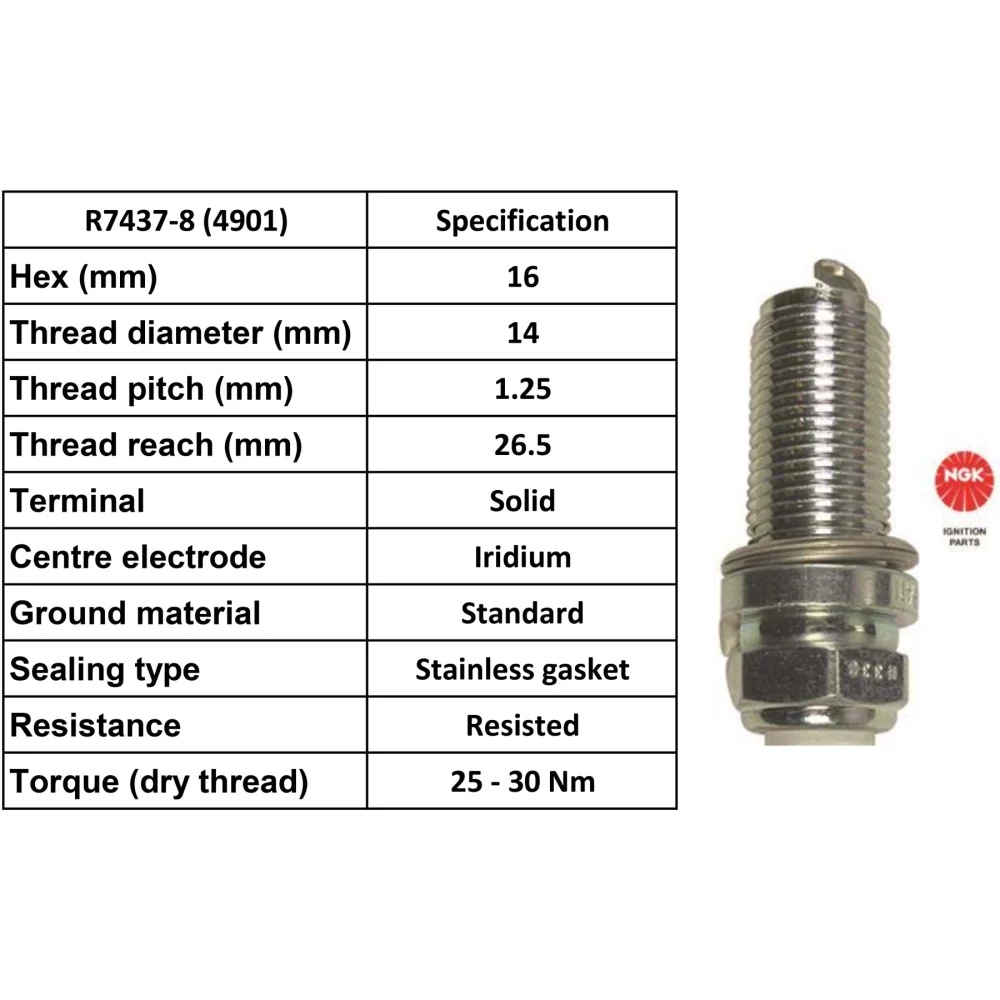

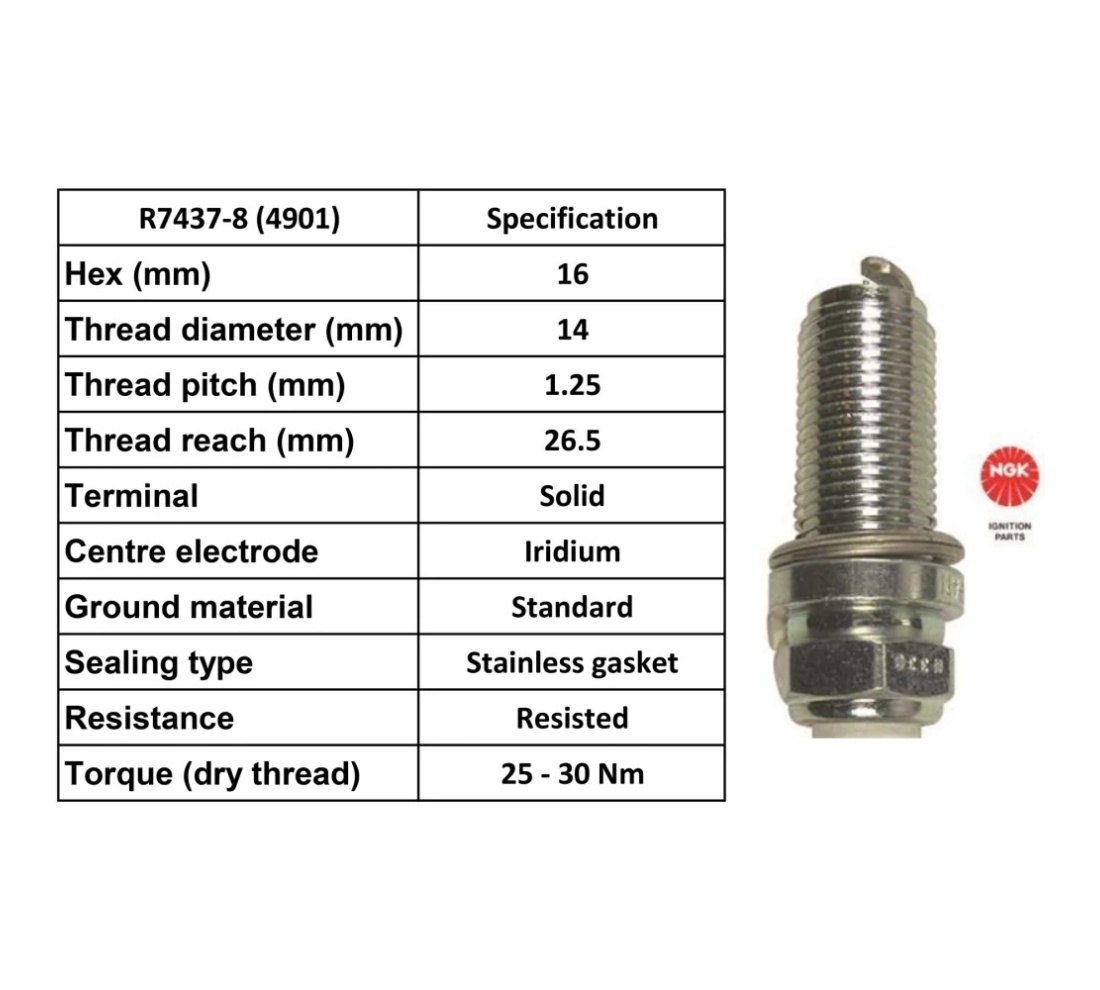

These racing plugs are a popular upgrade for modern turbocharged engines requiring a 26.5mm reach and ISO dimensions.
