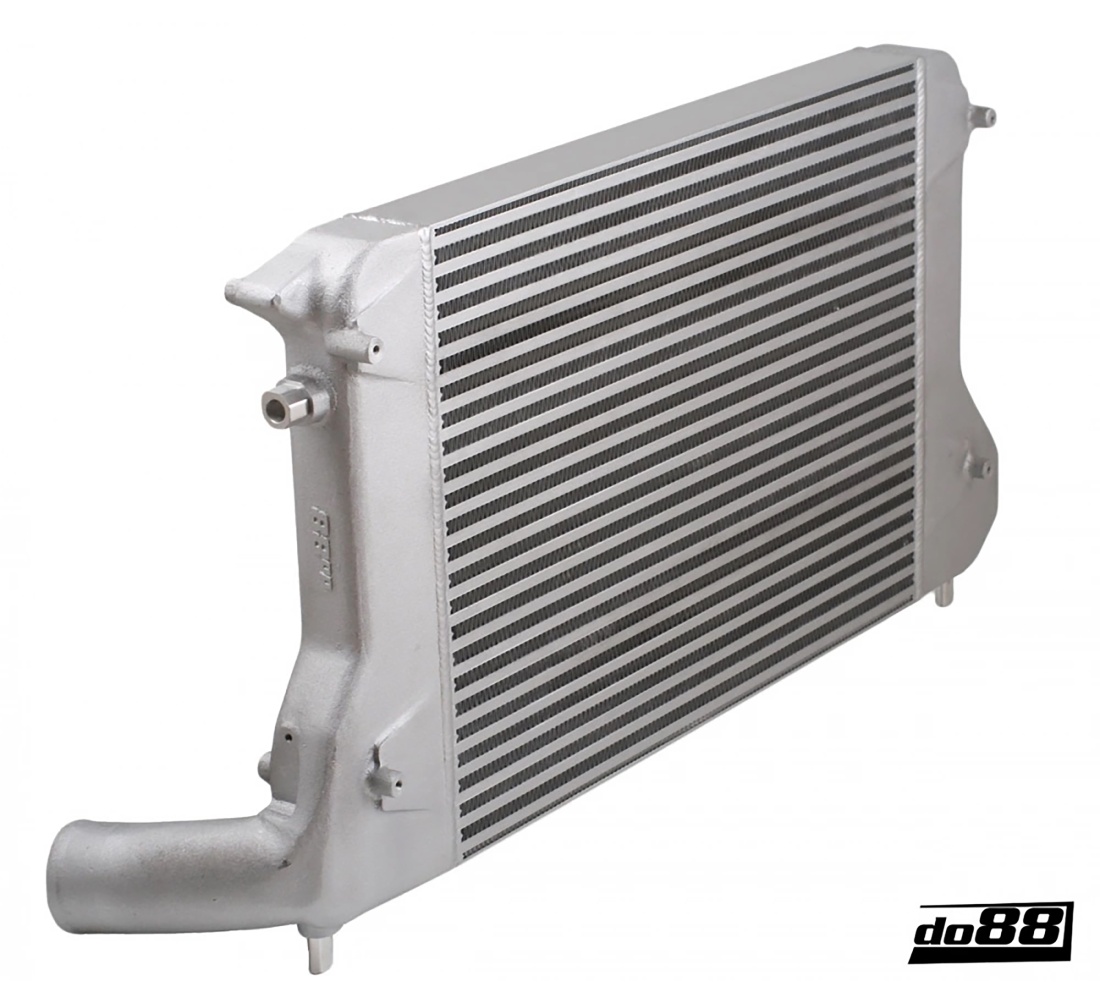

do88 Audi Seat Skoda VW 2.0T FSI do88 Intercooler

Do88 ICM-180 Audi Seat Skoda VW 2.0T FSI Intercooler

Product description

The best Audi Seat Skoda VW 2.0T FSI performance intercooler on the market!

This performance intercooler is developed by do88 to replace the original / OEM intercooler and gives true performance without the need of rebuilding the whole car!

Significant advantages with do88 performance intercooler (OEM intercooler):

- Core volume: 13342cm3 (7676cm3), do88 is 74% larger!

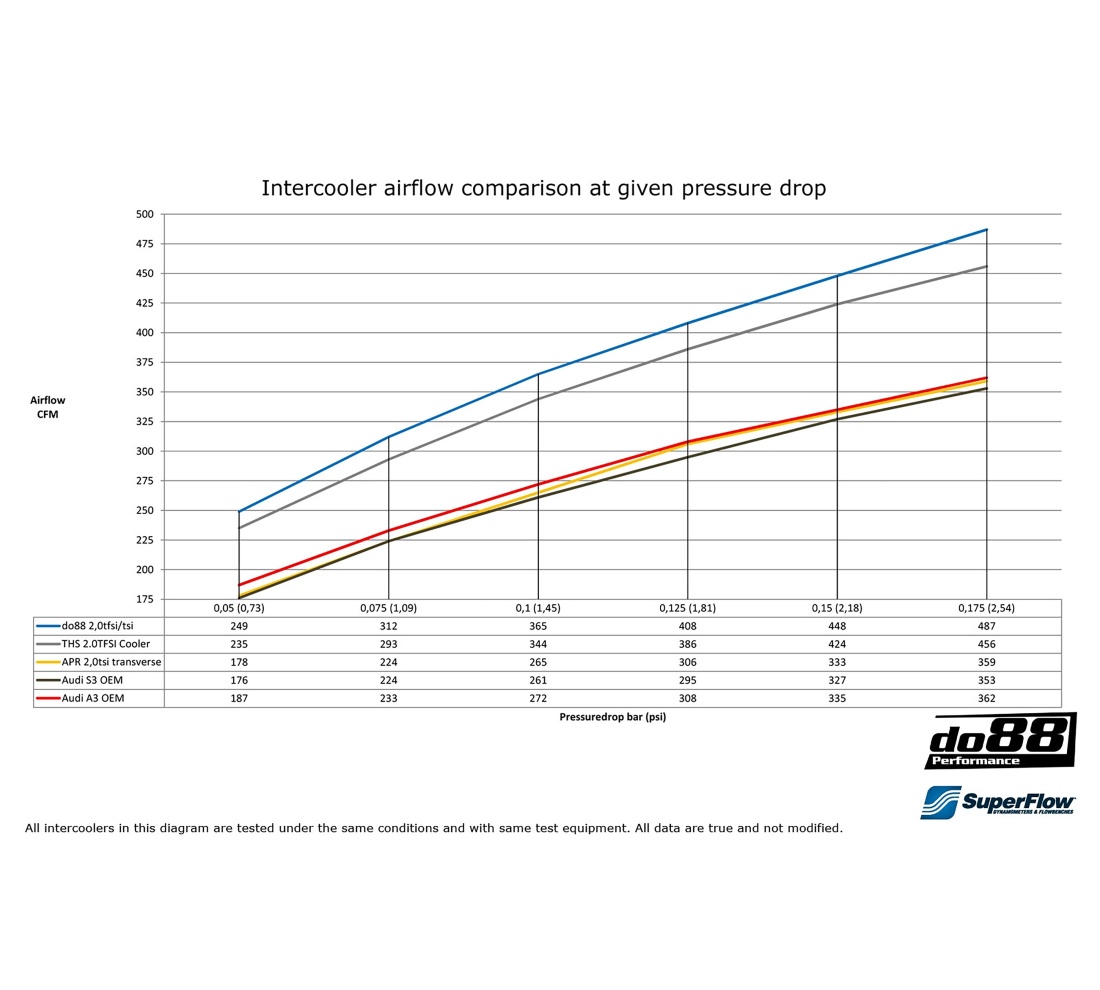

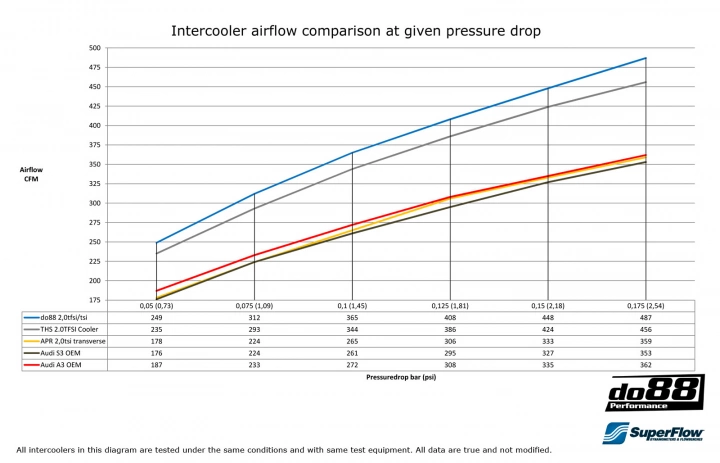

- Air flow at 0,15bar/2,18psi pressure drop: 448CFM (335CFM), do88 34% higher!

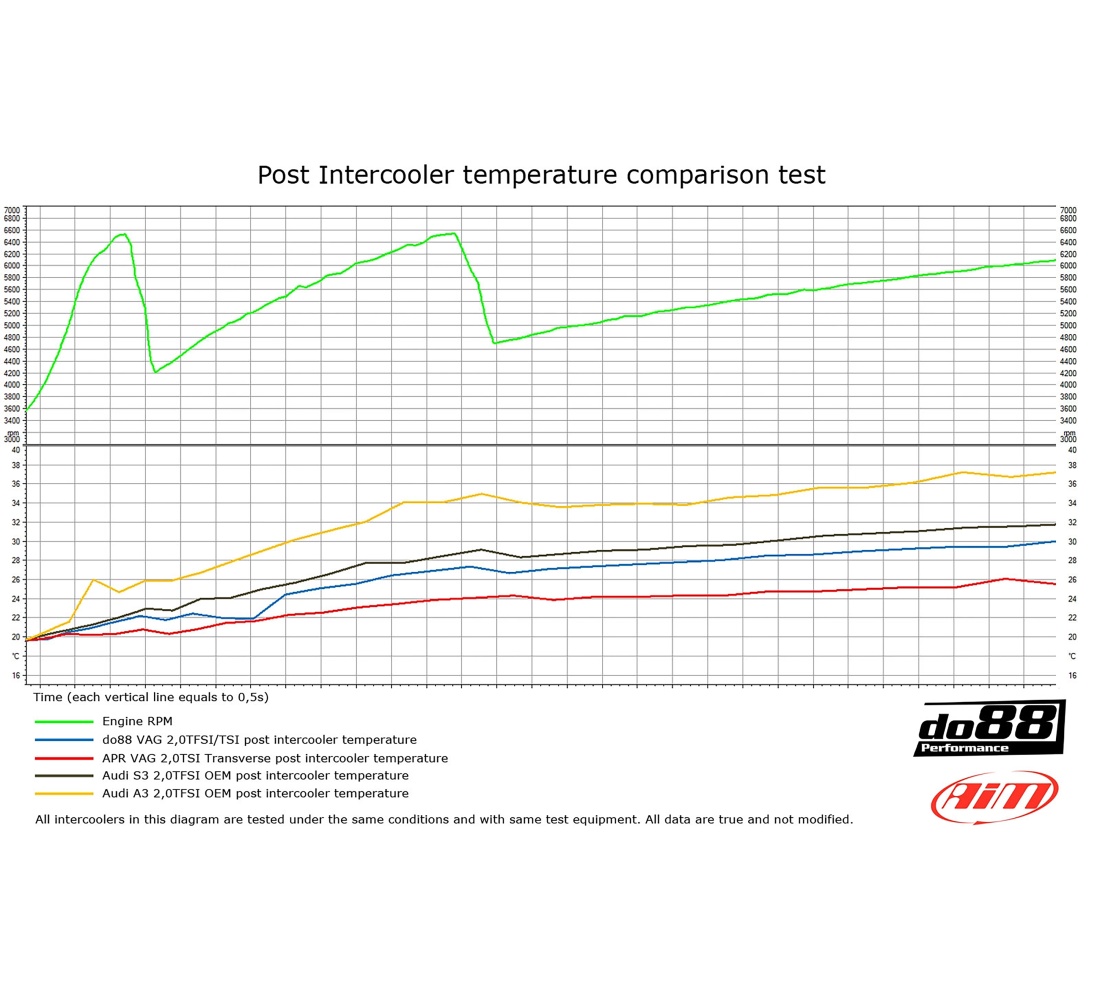

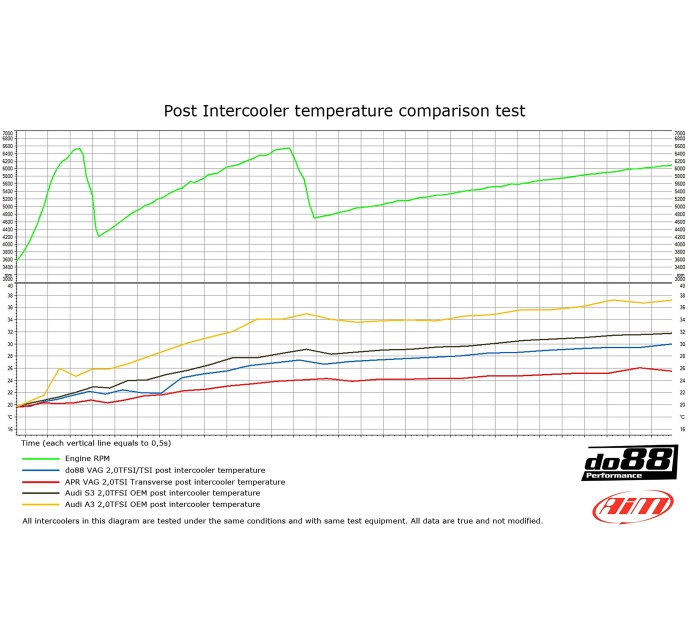

- Post intercooler air temperature at same conditions: 29°C (37°C), do88 8°C lower!

- Fits all cars in list below! (See installation Instruction)!

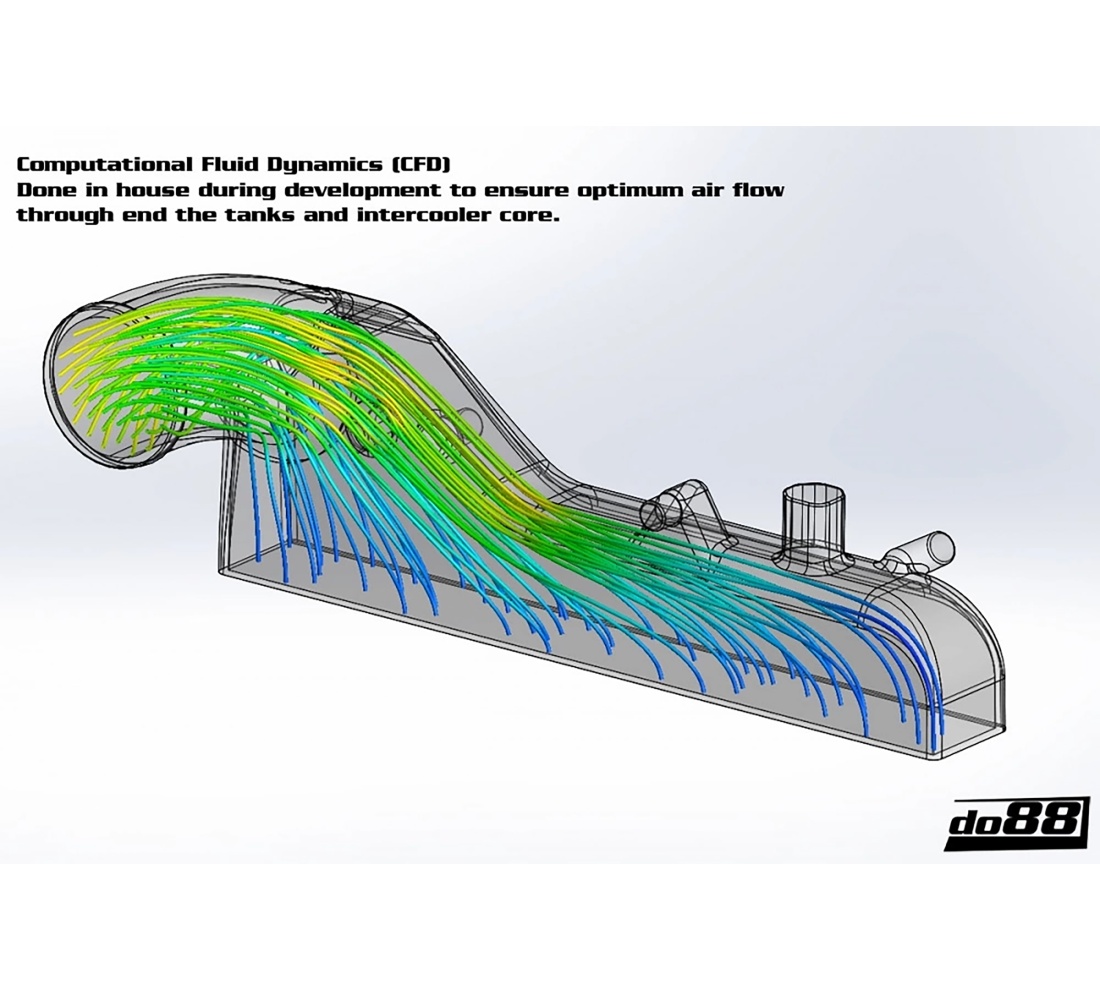

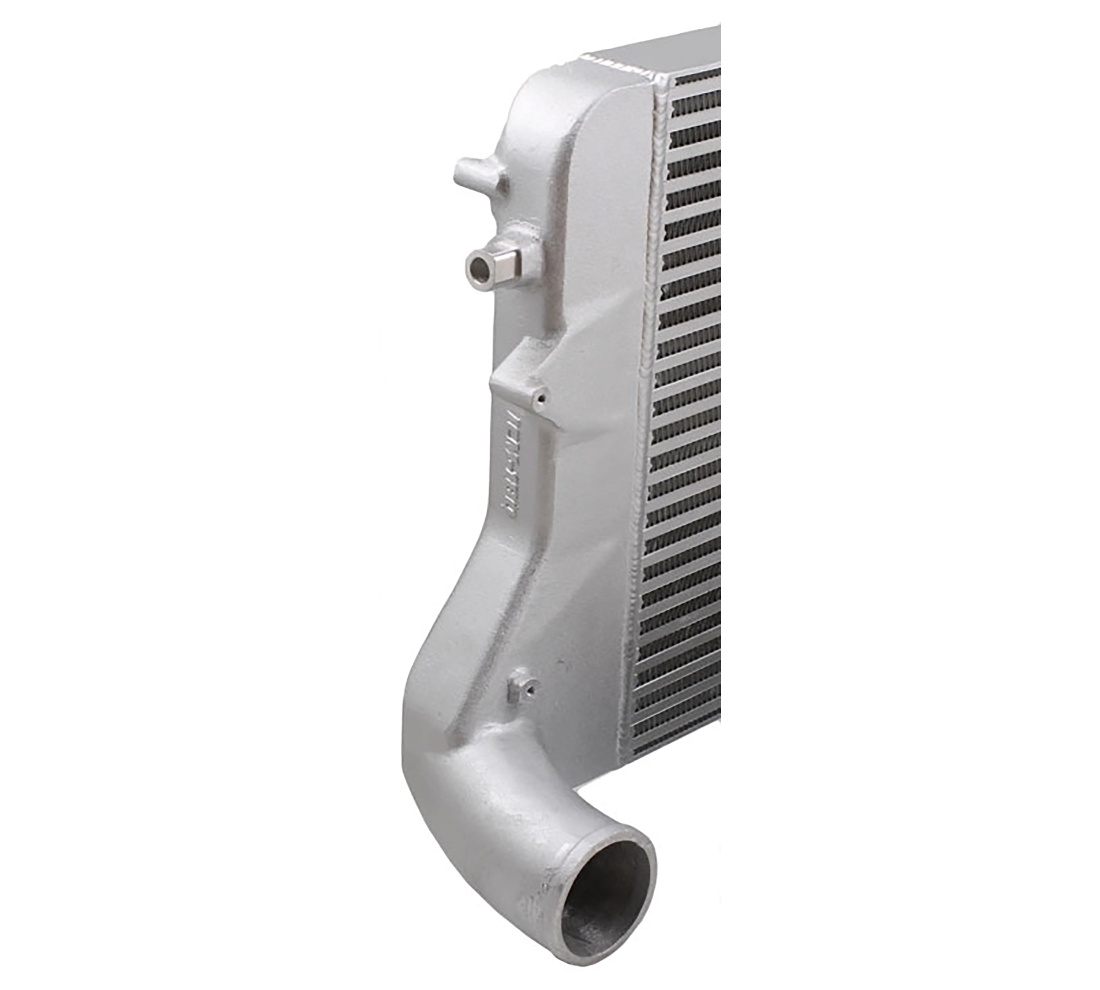

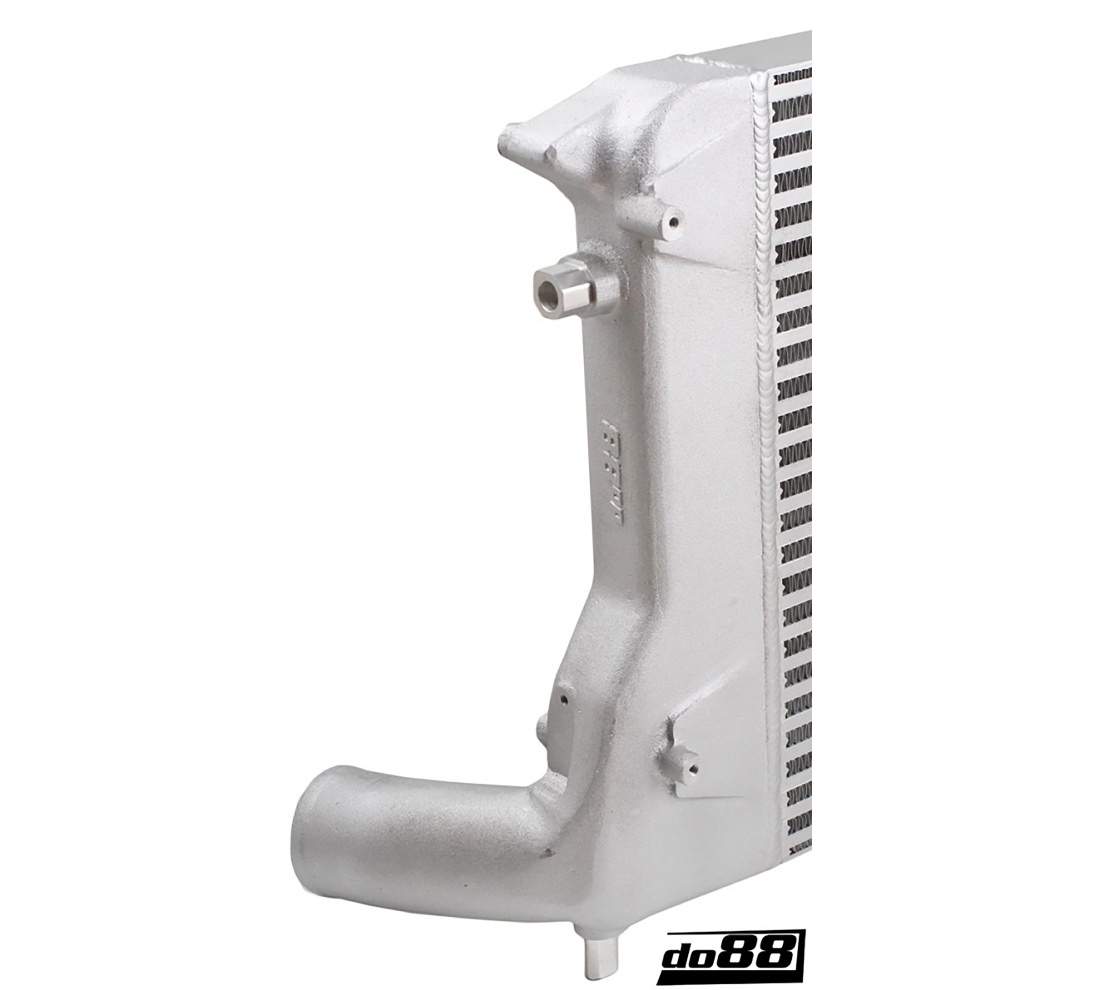

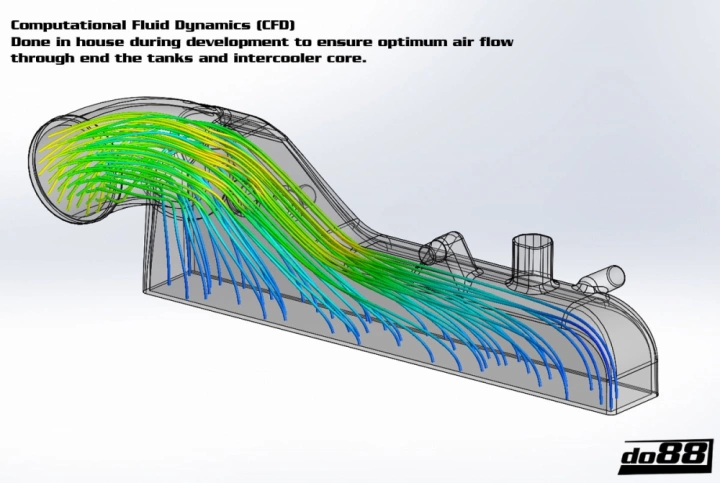

do88 performance intercooler are an all aluminium construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop!

Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 performance intercooler will give a performance increase over the OEM intercooler!

The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability!

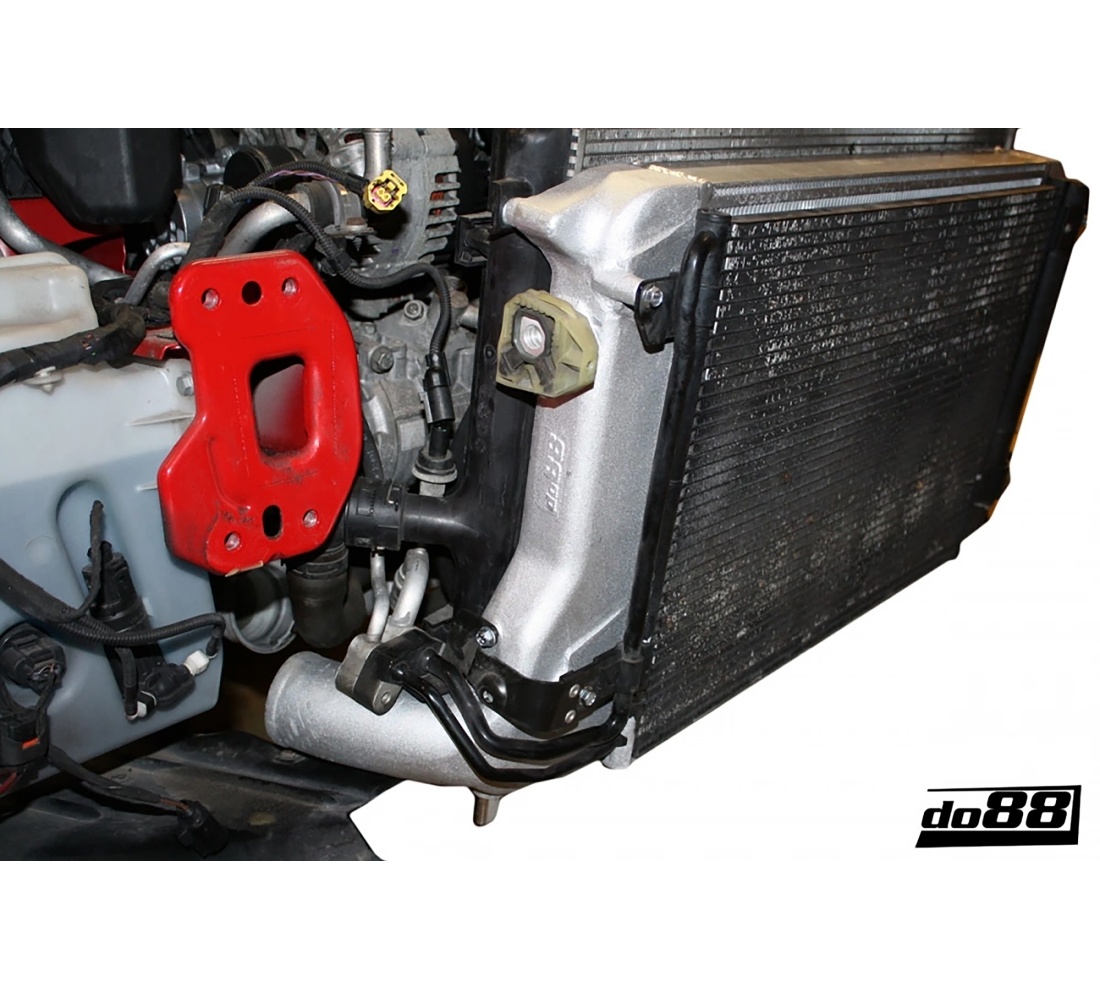

A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. But actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.

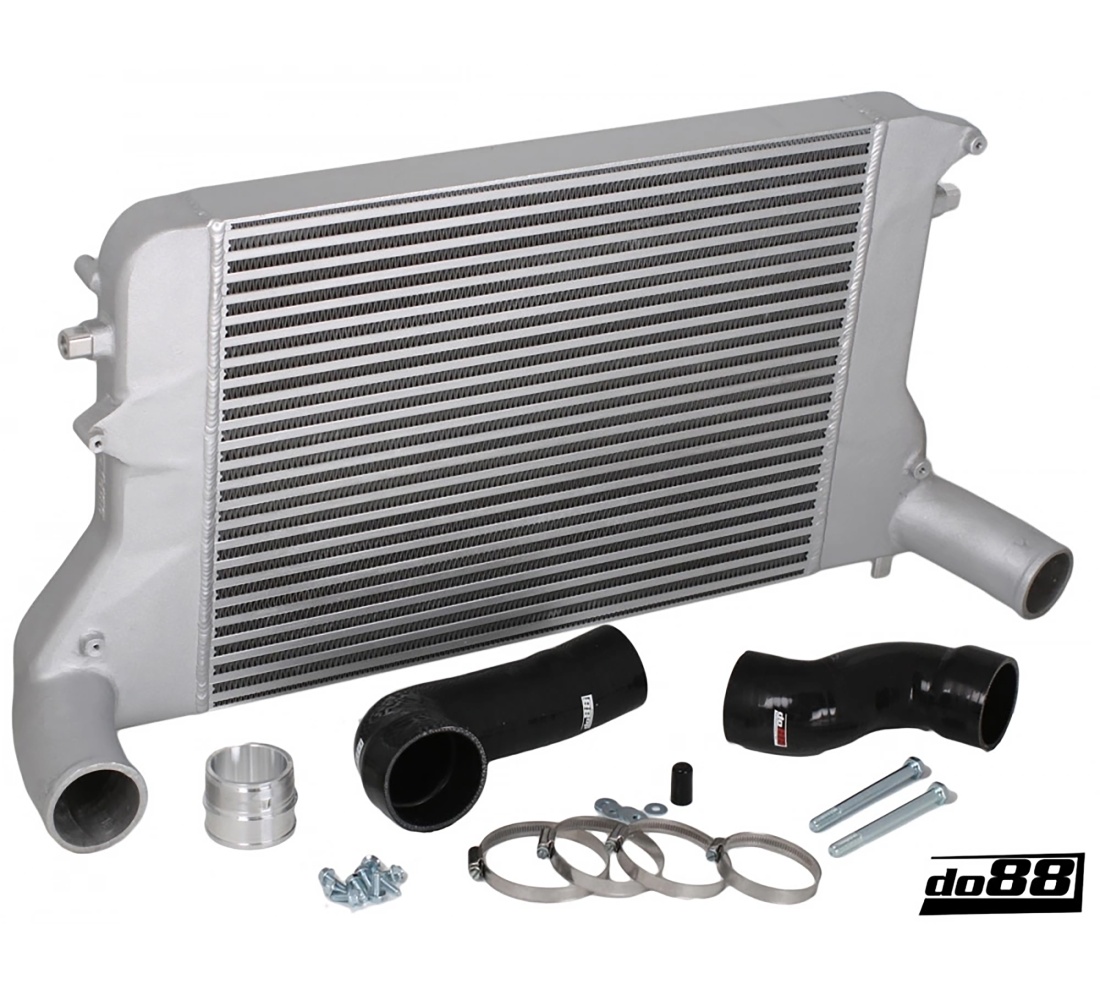

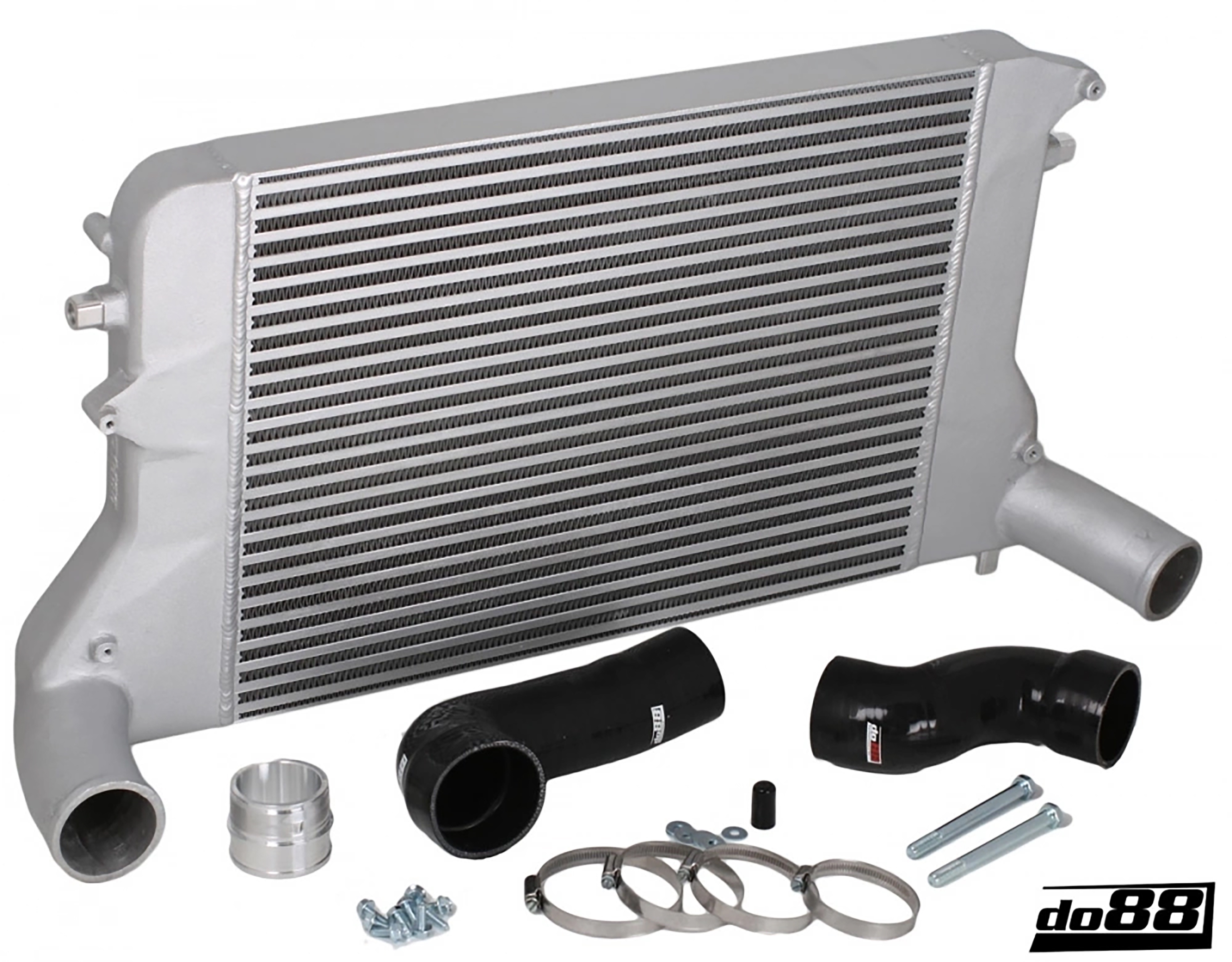

do88 performance intercooler comes with all hardware necessary for installation.

This intercooler fits all Audi Seat Skoda VW 2.0T FSI specified in the list below.

Link to installation instructions »

Fits model

Audi A3
Year models: 2005-2012
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

Audi S3
Year models: 2006-2012
Engine: 2.0 TFSI 265hk
           2.0 TSI 265hk

Audi TT **
Year models: 2007-2014
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

Seat Altea
Year models: 2005-2009
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

Seat Leon
Year models: 2005-2012
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

Seat Toledo
Year models: 2006-2009
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

Skoda Octavia
Year models: 2006-2013
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

VW Golf *
MK5 MK6
Year models: 2005-13
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

VW Golf R *
MK6
Year models: 2010-13
Engine: 2.0 TFSI 265hp
2.0 TSI 265hp

VW Jetta ***
Year models: 2005-2014
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

VW EOS ***
Year models: 2005-2014
Engine: 2.0 TFSI 200hp
2.0 TSI 200hp

VW Scirocco ***
MK3
Year models: 2008-2015
Engine: 2.0 TSI 200-220hp

VW Scirocco R ***
Year models: 2009-2015
Engine: R
265-280hp

Note!
* On VW Golf MK6 (2008-) the stock / OEM fresh air hose to the air filterbox will not fit because of the increased intercooler thickness.

** Your car must have OEM pressure pipe with part number 1K0145840R.

*** On VW Eos, Scirocco and Jetta the intercooler pipe has a different part number: 5C0145770, on these cars the outlet hose must be extended, contact customer service for guidance.

OE-ref. / Replaces

1K0 145 803 A
1K0 145 803 S
1K0 145 803 T
3C0 145 805 R
