RACINGLINE 2.0 TSI OIL MANAGEMENT KIT & CATCH CAN FOR GOLF 7 R, GOLF 7 GTI, AUDI S3, LEON CUPRA AND MORE, VWR13G700

2.0 TSI
Oil management system
& catch can.

for 2.0 TSI EA888.3

If you're going to take your MQB car on track, you really need our 2.0 TSI Oil Catch Can Oil Management Kit. Without it, you'll risk oil starvation.
Simple as that.

How does
it work?

Not all catch tank kits are equal.

Designed with a built in engine baffle

plate, our system is uniquely designed to aid engine oil control, as well as catching unwanted oil and water vapour.

> The 2.0 TSI EA888.3 retains oil in the engine under excessive braking G-forces. Oil pools at the front of the engine, leading to smoke clouds and ultimately oil starvation.

> 3 way baffled catch tank to effectively  collect excess moisture and oil vapour.

> Keeps your intercooler and inlet tracts clear of oil build-up and provides clean airflow through the inlet manifold.

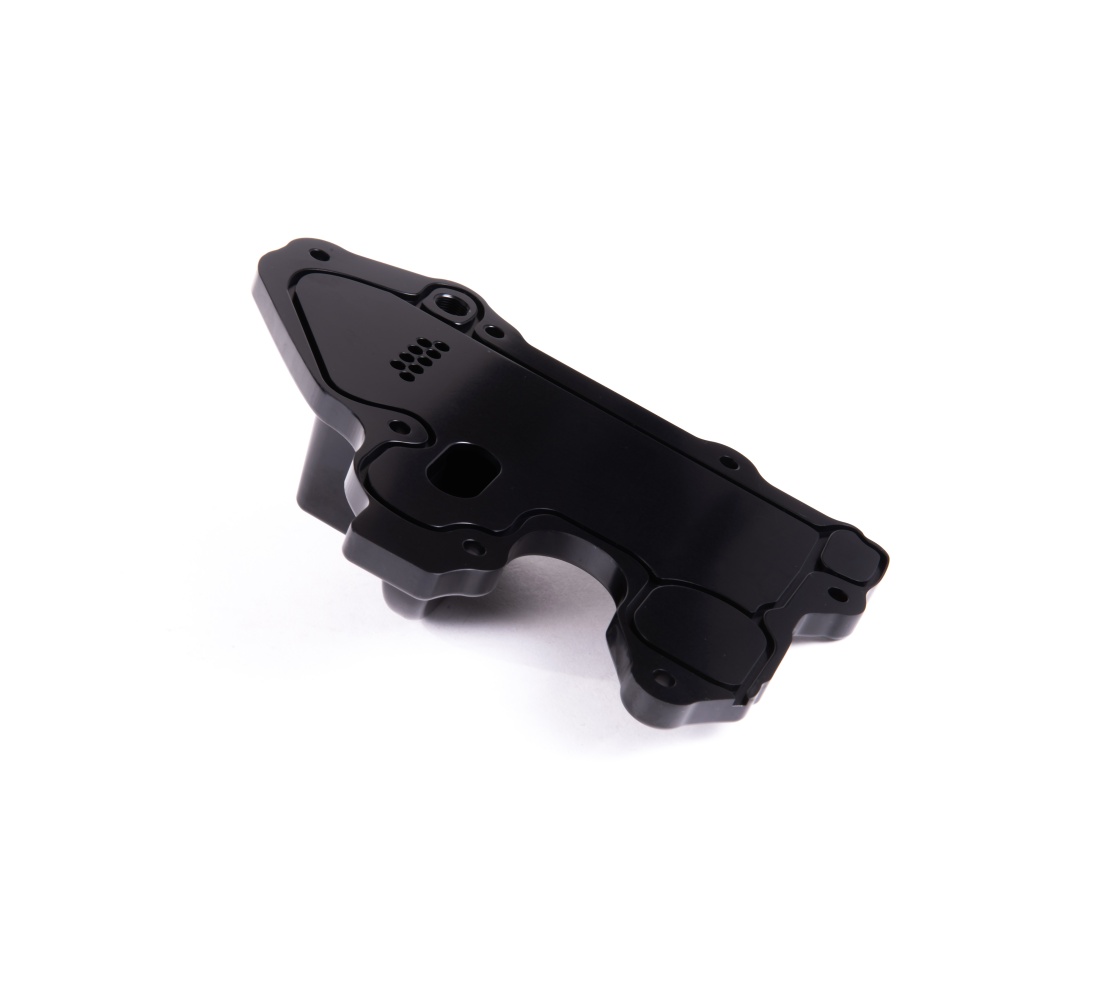

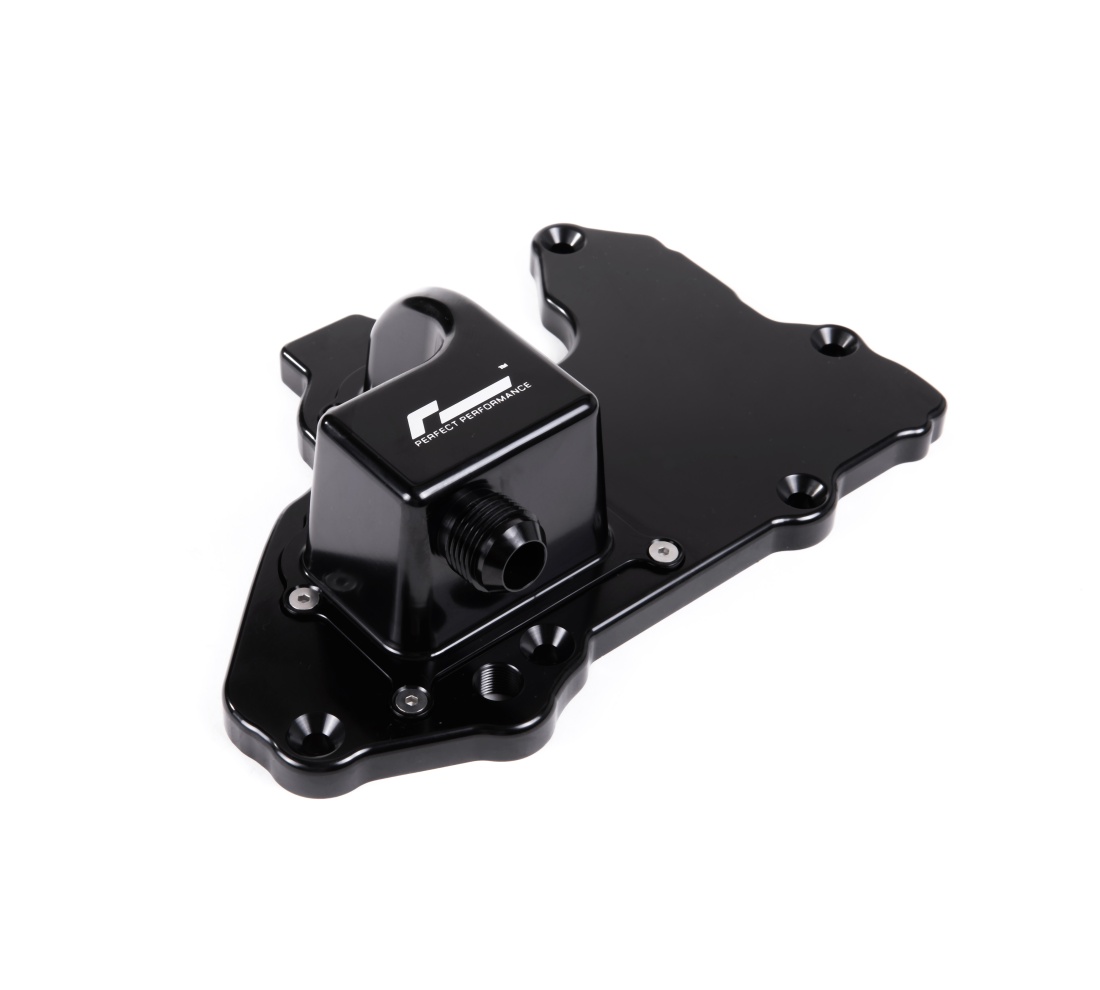

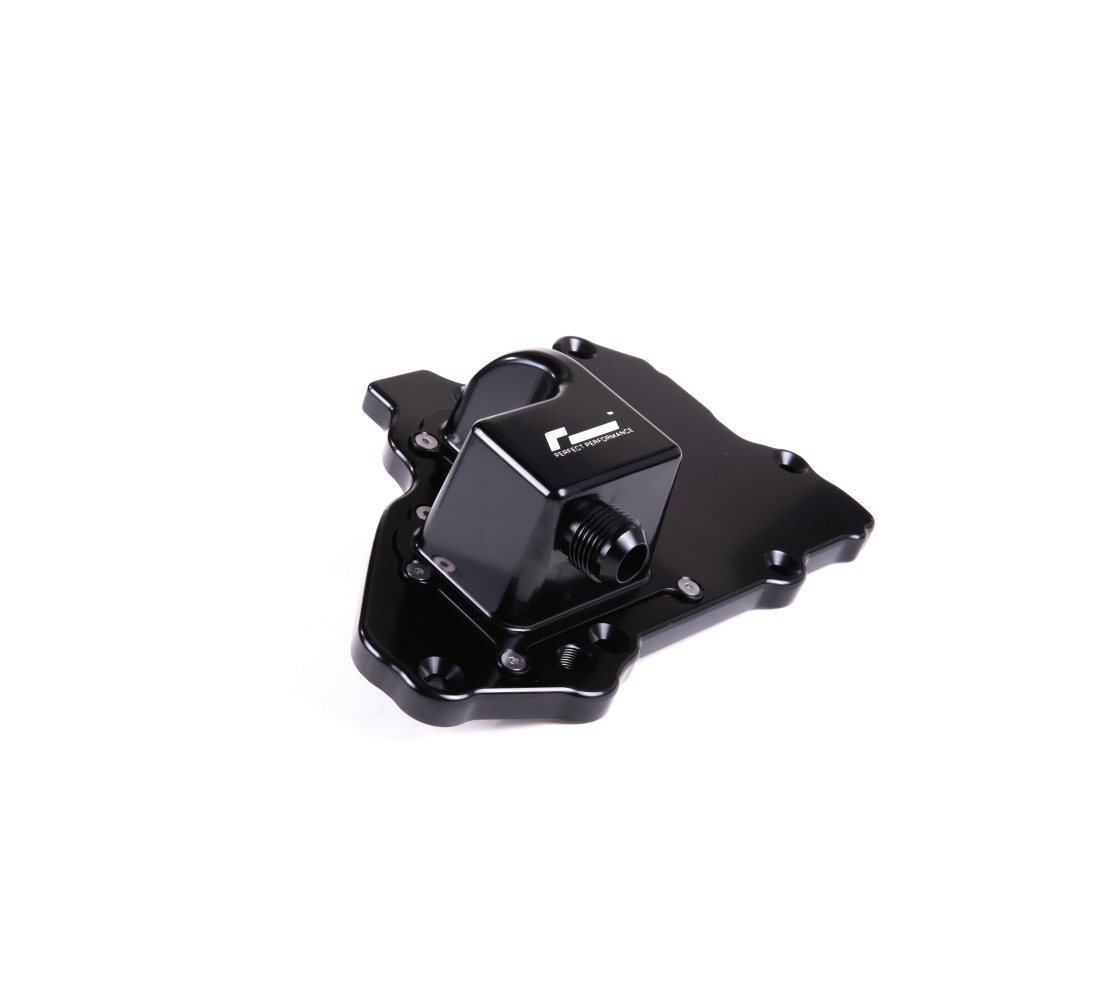

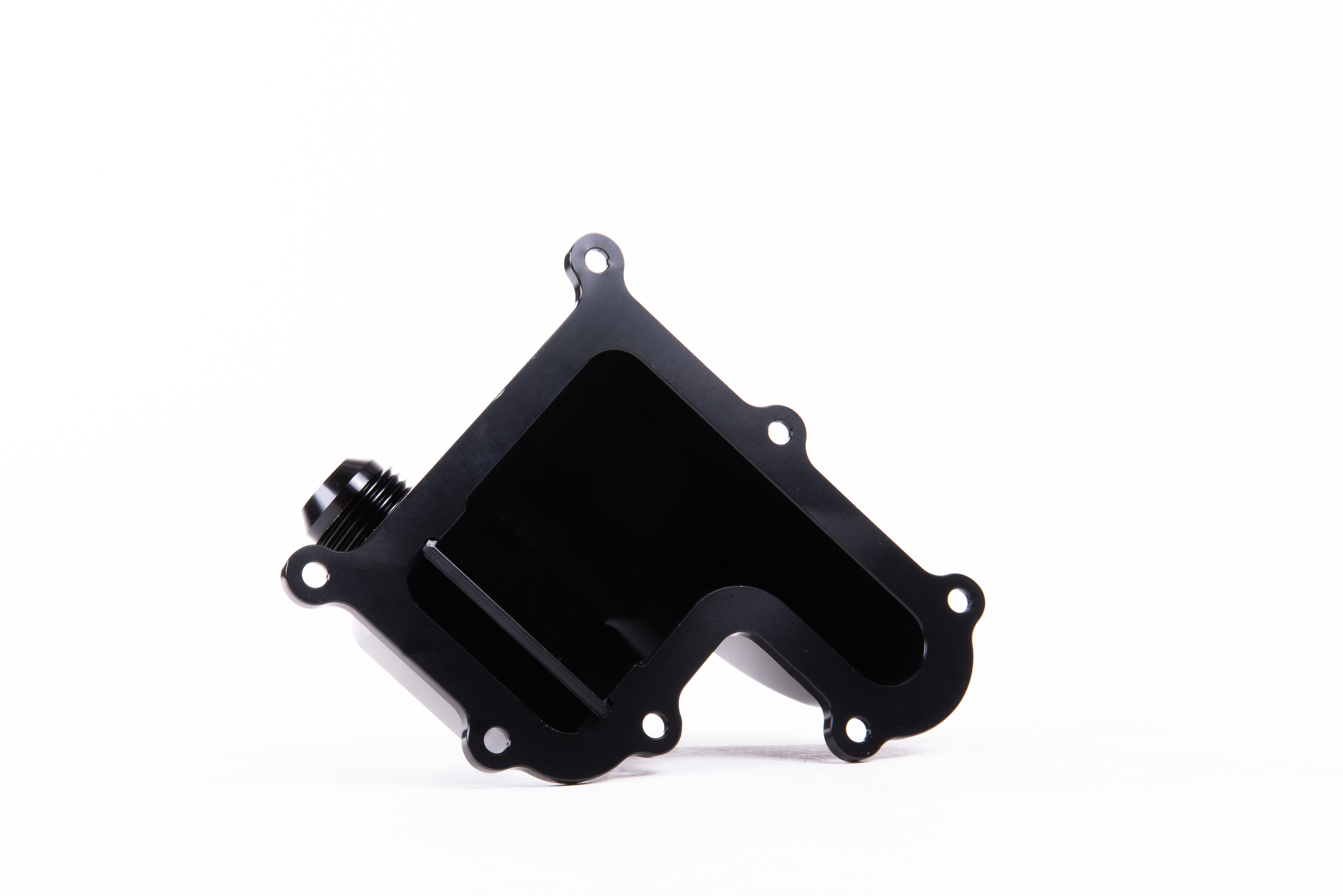

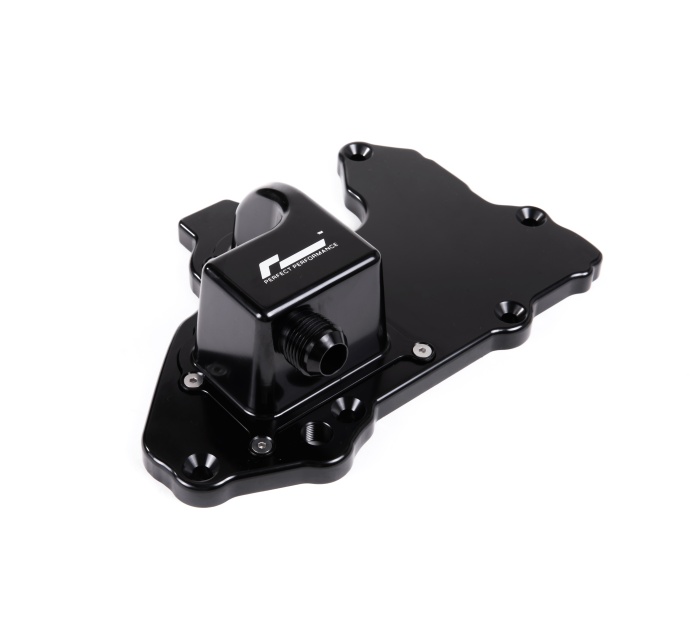

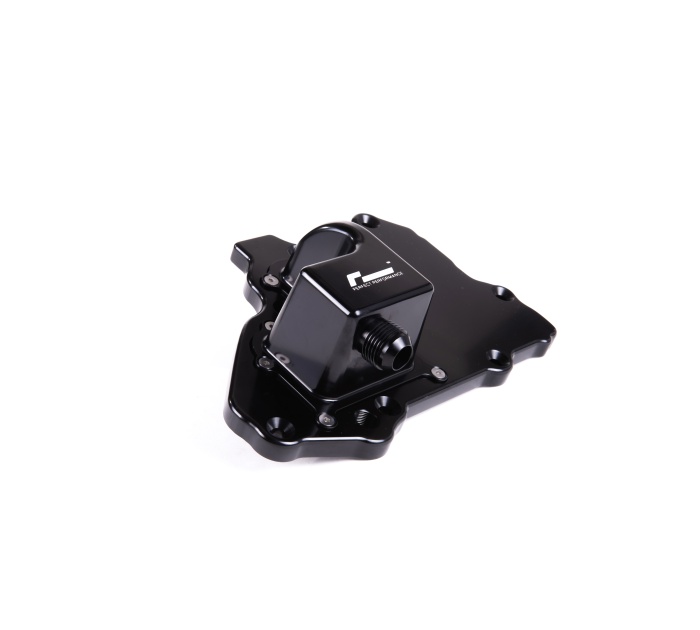

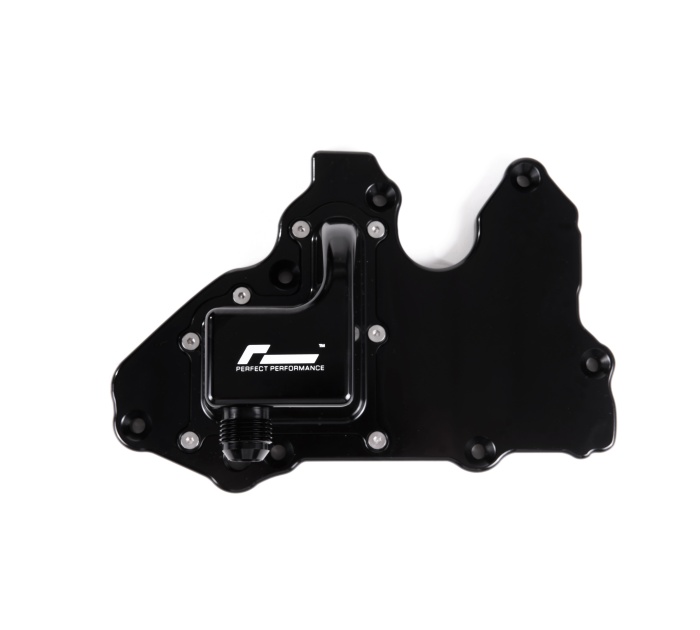

DIRECT PCV REPLACEMENT

Our catch tank kit is supplied complete with a replacement PCV plate offering easy installation.

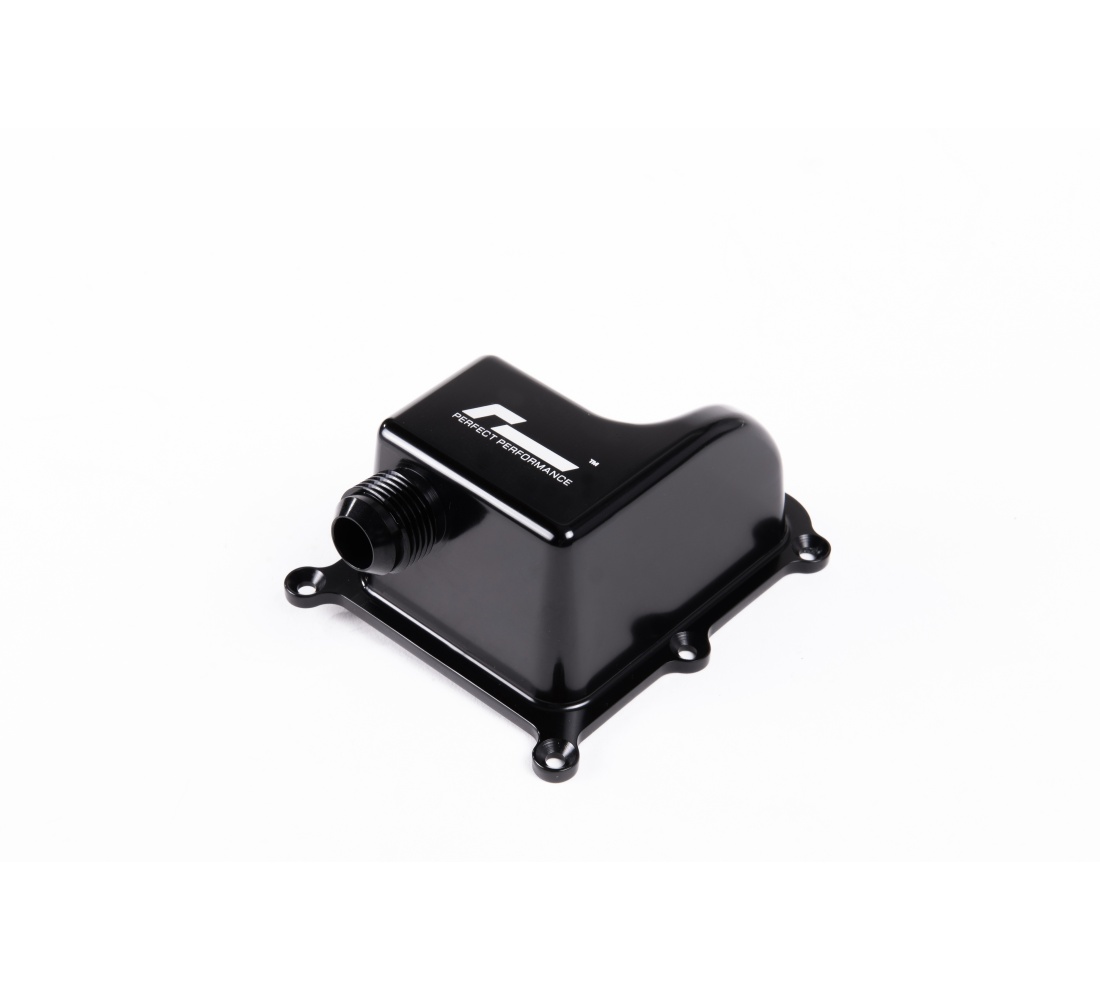

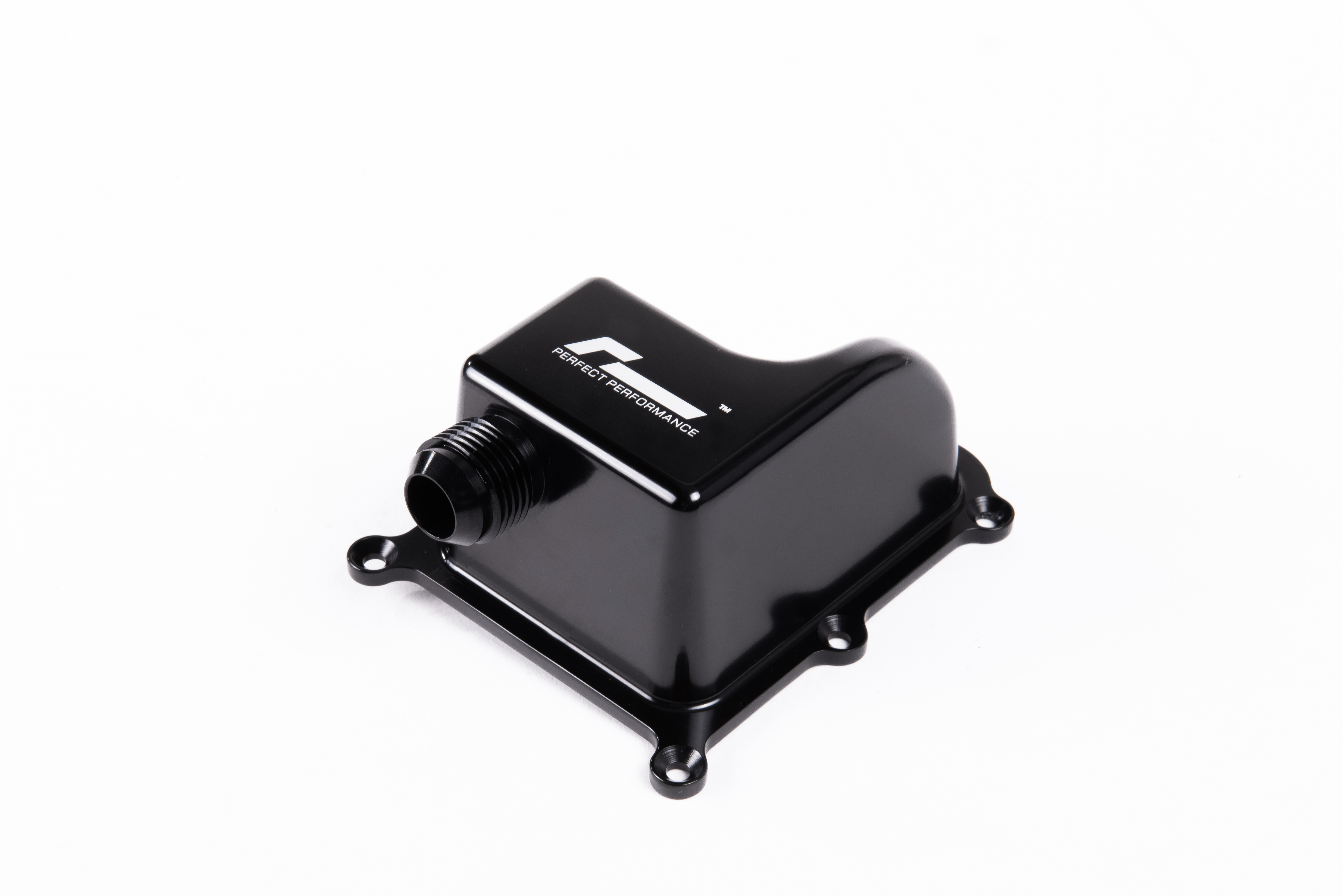

SUPERIOR BAFFLE SYSTEM

A built in baffle plate prevents oil surging to the cylinder head and making its way into the intake - or worse, starving the engine.

PRECISION MACHINED

Precision machined components utilising the latest 5 Axis CNC machines.

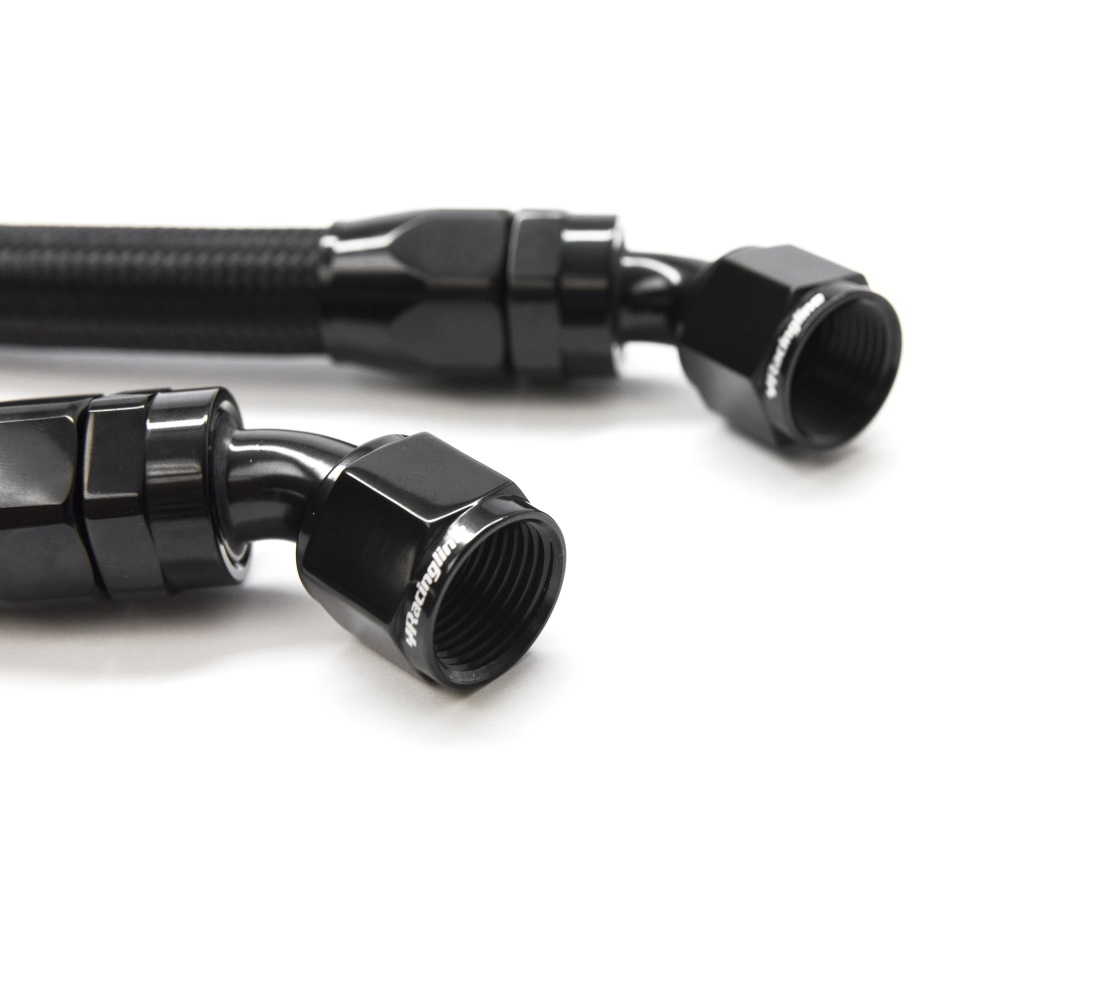

210 SERIES BRAIDED HOSE

Our oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience.

CATCH TANK

Not just a tank, but a three way inner division ensures separation of moisture and oil.

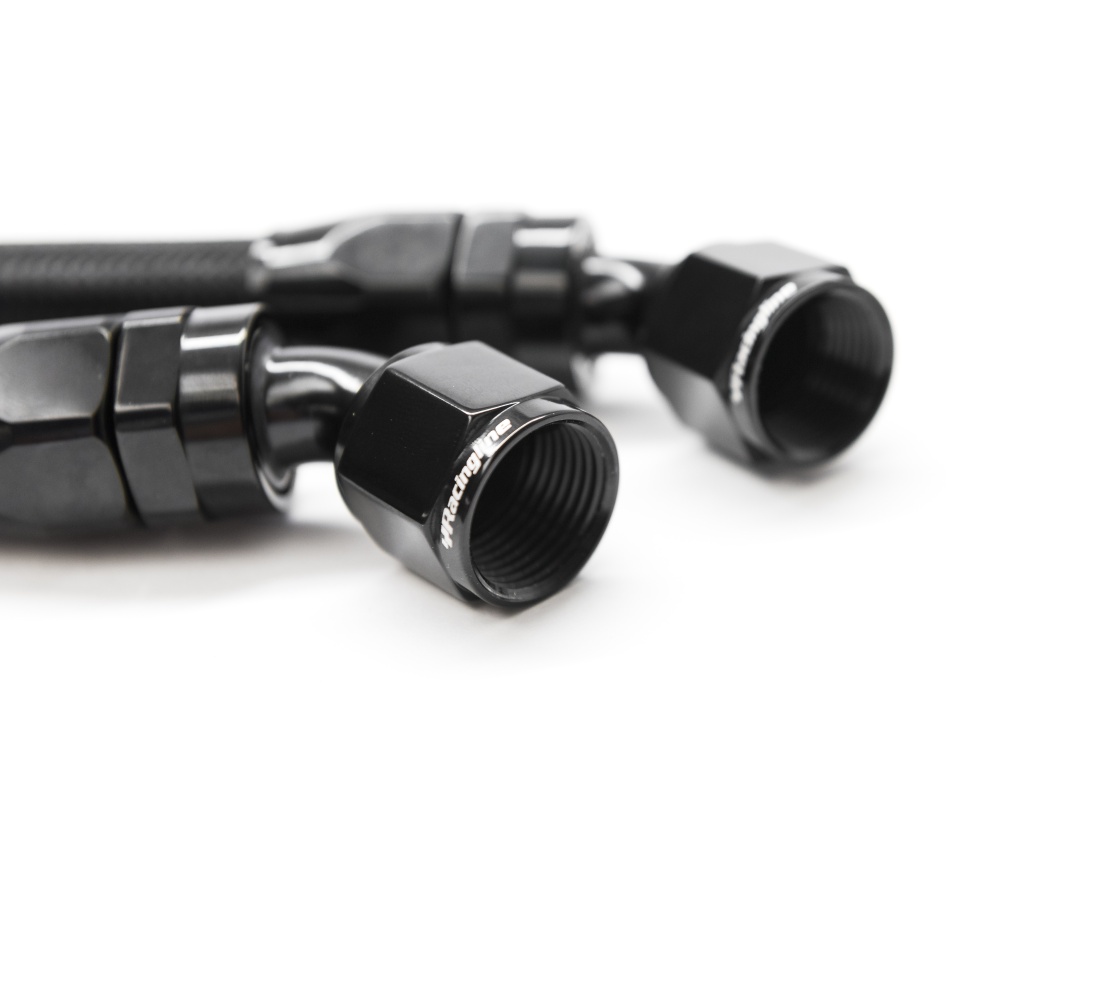

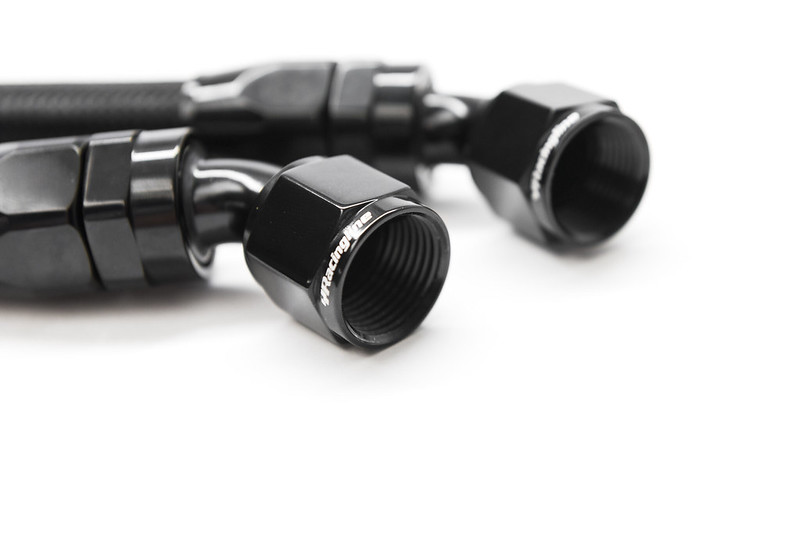

POLISHED SWIVEL FITTINGS

Racingline fittings are all hand polished before anodising for the ultimate finish and limits the chances of "Spanner Rash".

THE EA888.3

OIL SURGE ISSUE

Regular track drivers have discovered that not all catch tank kits are equal.

​

The most important and unique aspect of our Oil Management System is that it offers a proper solution to oil starvation under high-G braking. So, push your car hard on track, with track-tyres and uprated brakes and this is something that you really need to be aware of.

​It's no surprise that we share this exact same oil management design with Volkswagen Motorsport, Audi Sport and Cupra for the TCR race cars. Our clever baffled PCV block forces the oil back to the sump under heavy braking to fix this problem once and for all.

 Don't go on track without it!

READ MORE /// BLOG

WHAT HAPPENS
WITHOUT IT.....

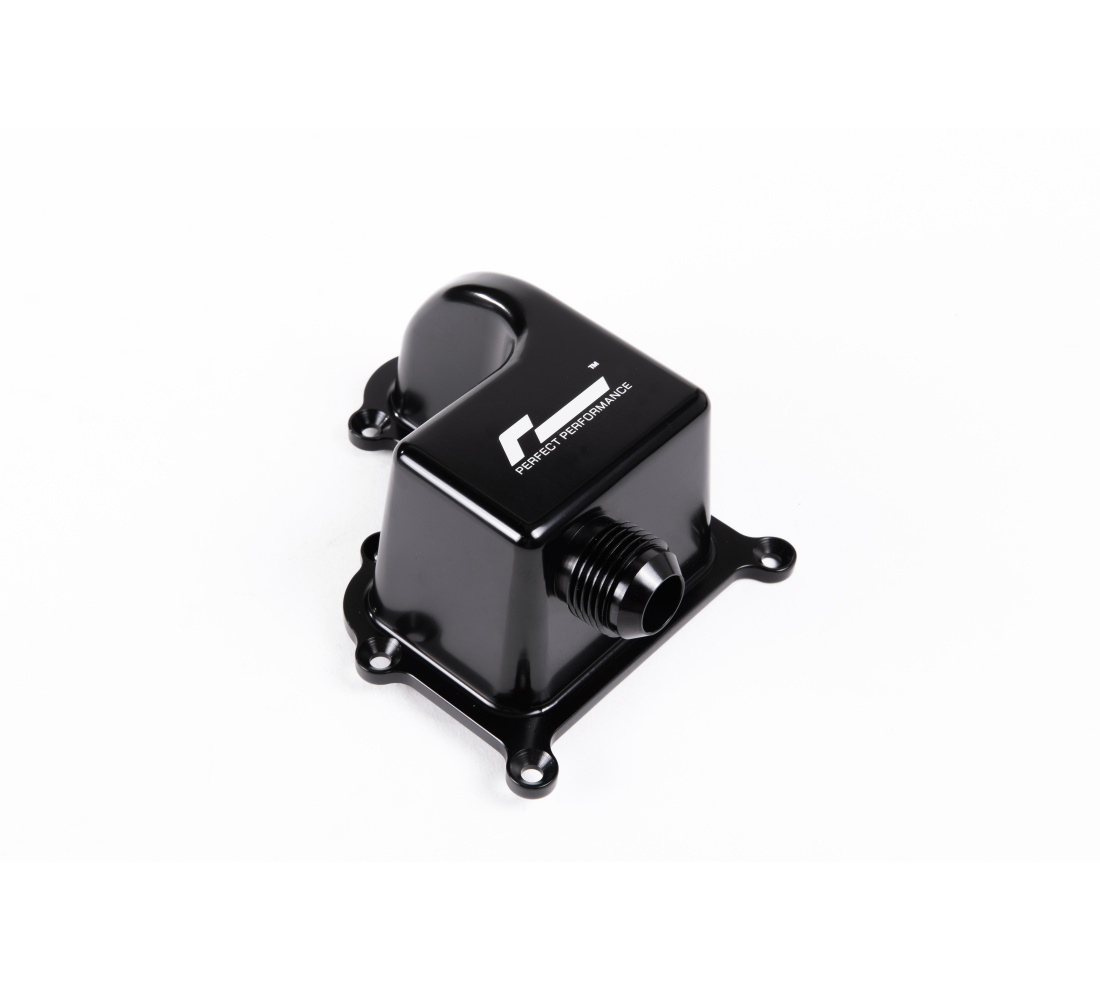

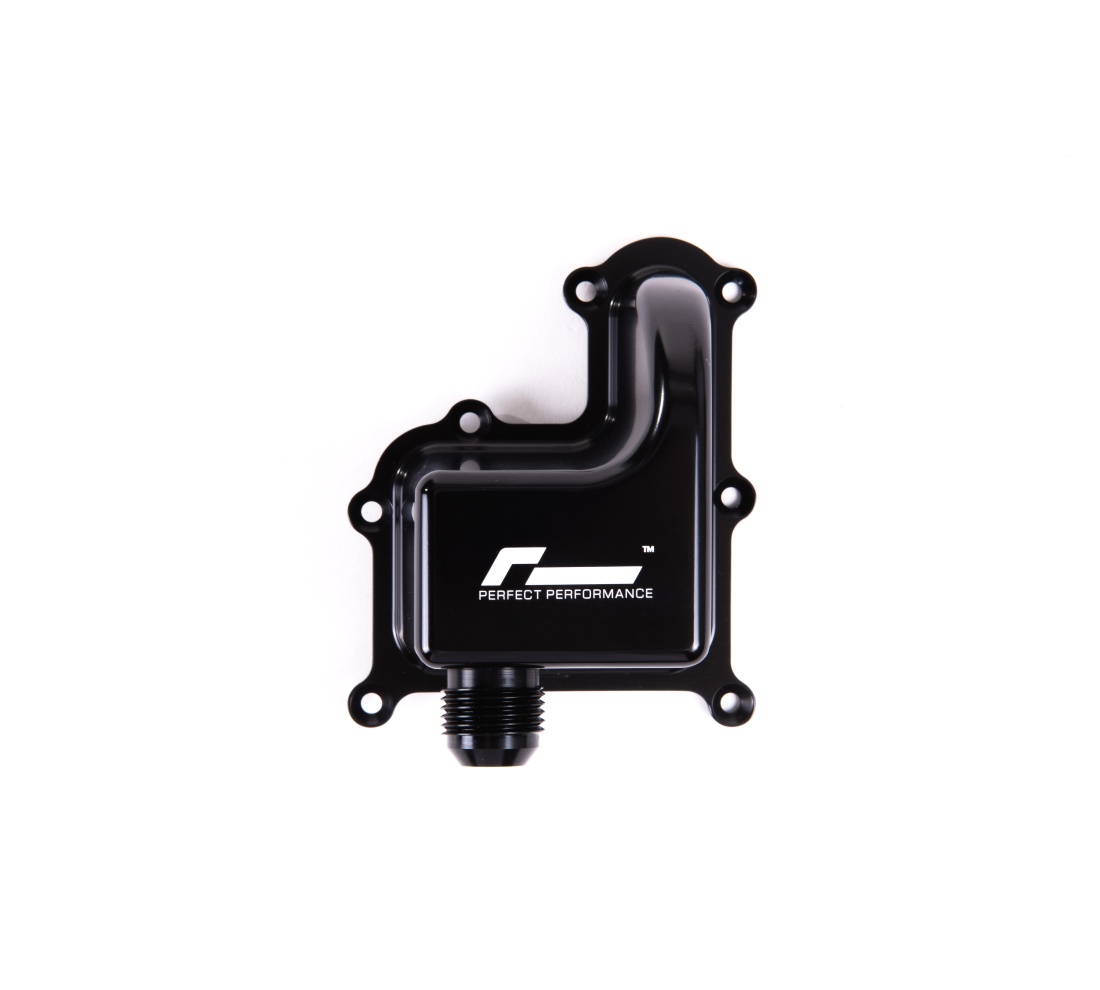

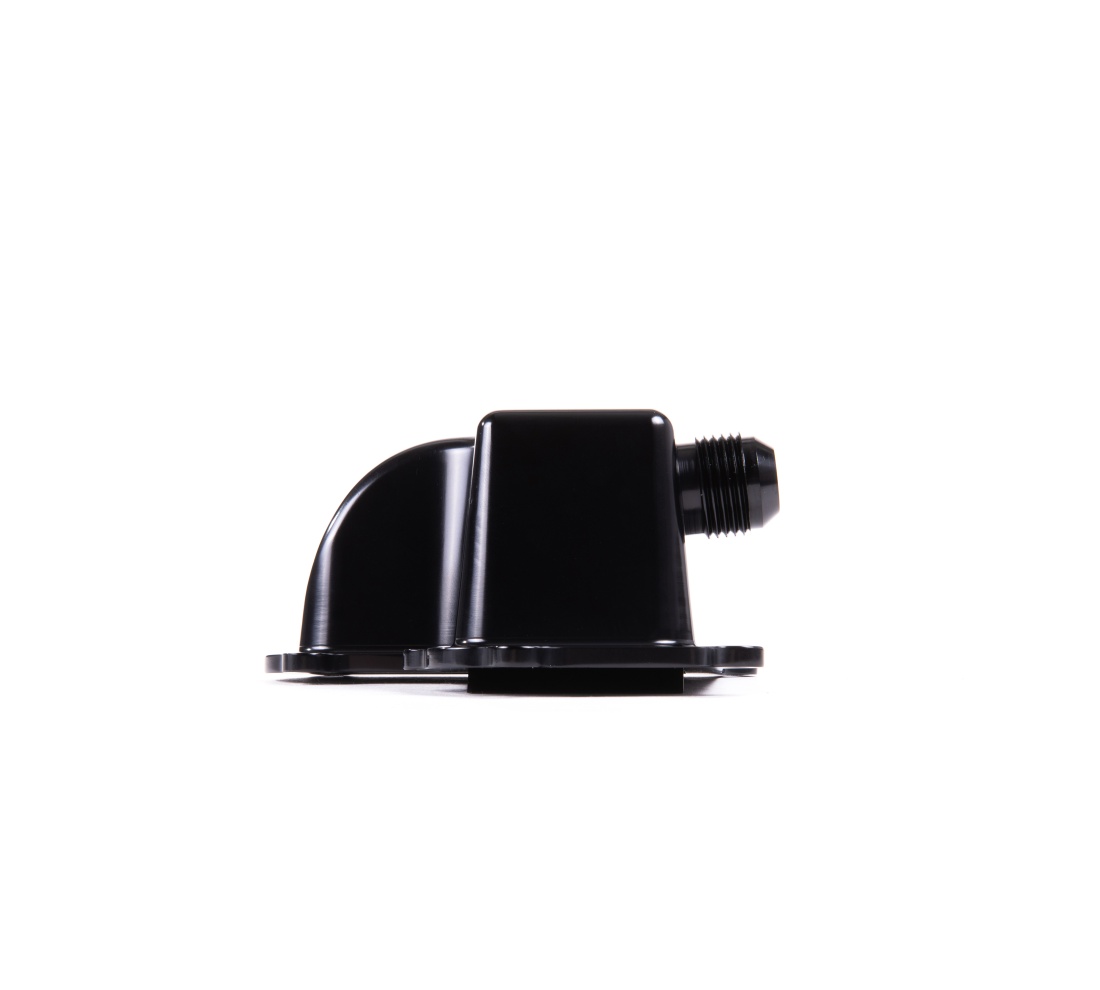

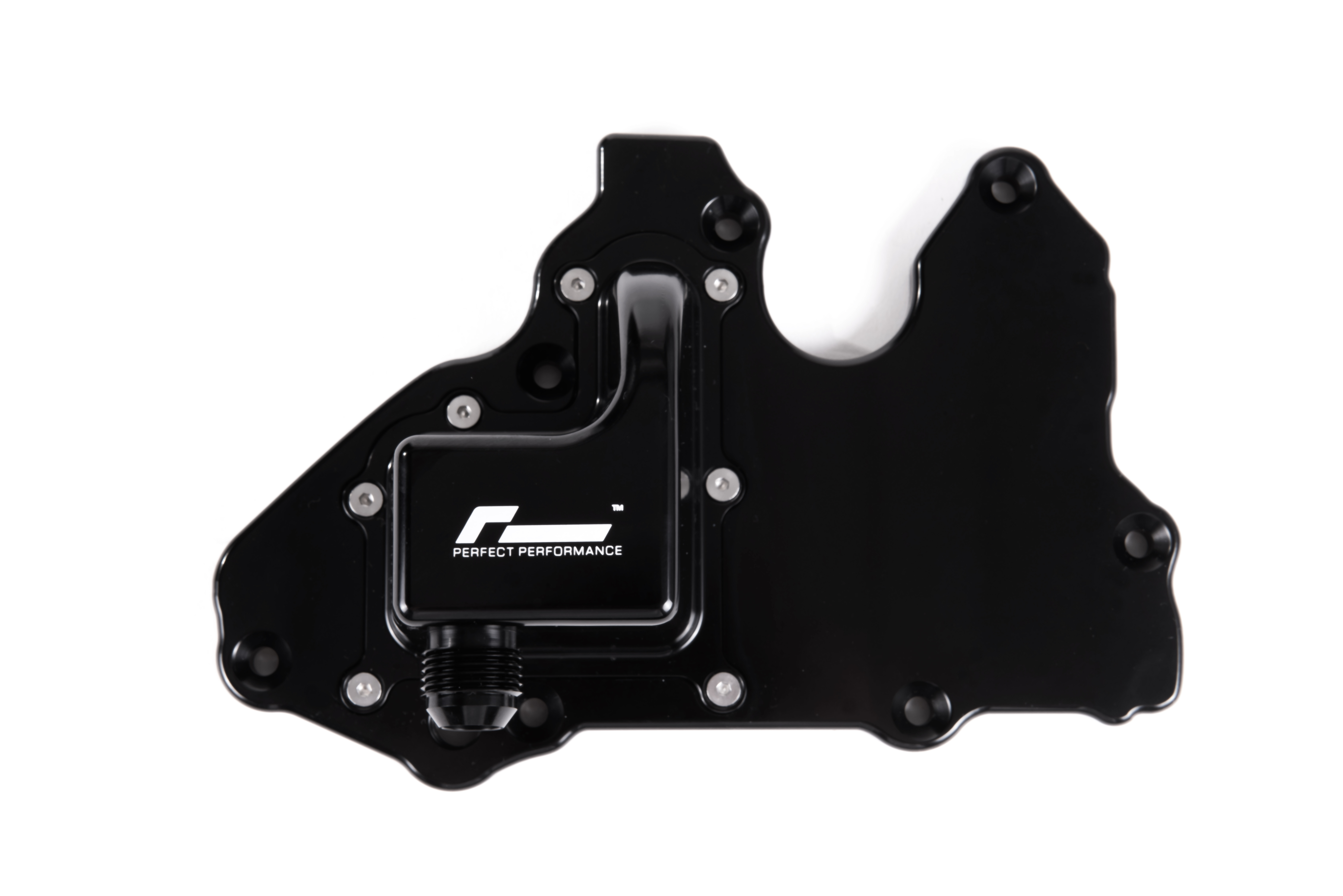

PRECISION ENGINEERED FOR PERFECT PERFORMANCE.

> Meticulously machined with the latest CNC technology.

> AN-10 male fitting for main breather line.

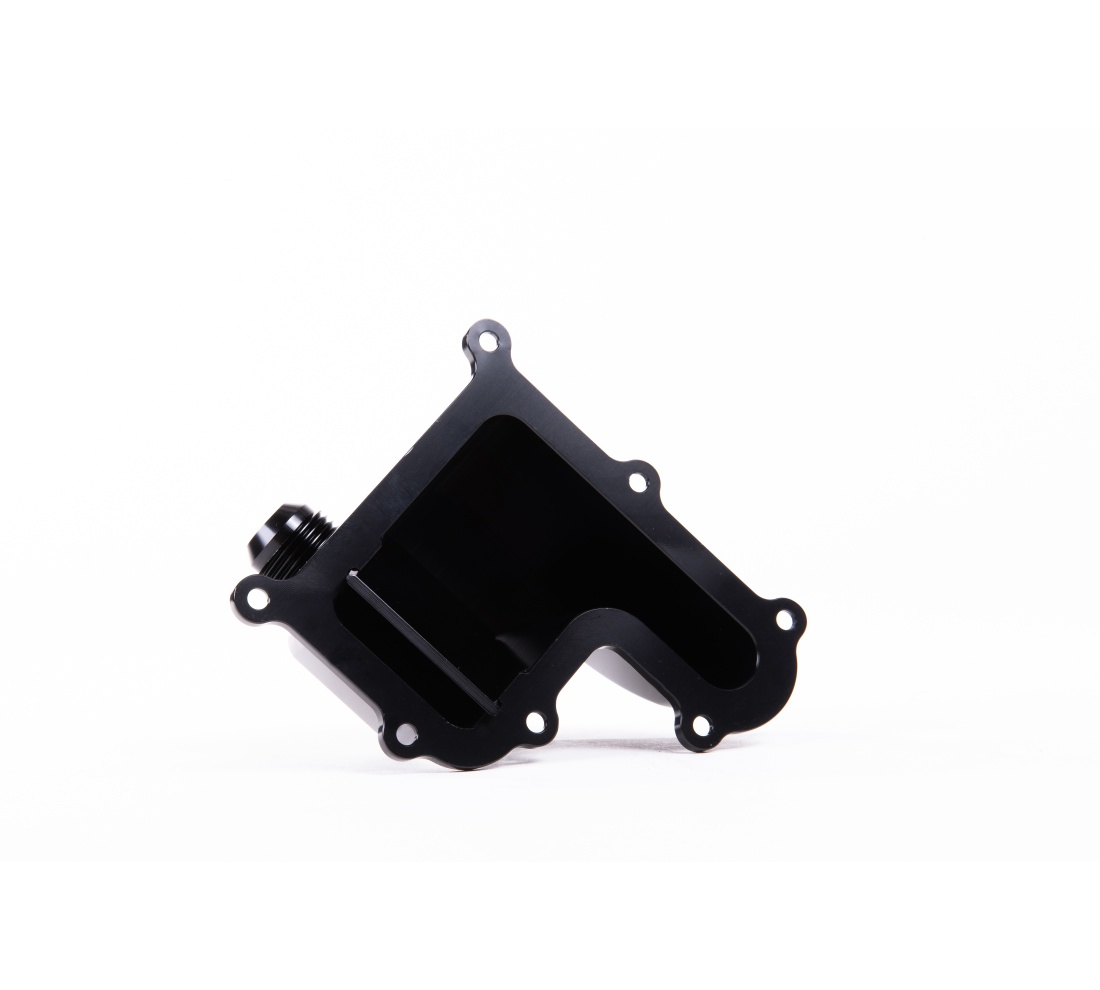

> Removable baffle plate for easy maintenance.

> Sealing gasket against the PCV replacement plate.

YOU MAY

ALSO NEED

Own a Golf 7R or Audi S3 8V?

​Golf 7R and some early Audi S3 models have a different windscreen washer bottle fitment to the other MQB cars.  The reservoir is located on the right of the vehicle - which is where your new Catch Can will be mounted. So our Remote Washer Refill kit must be fitted as well.

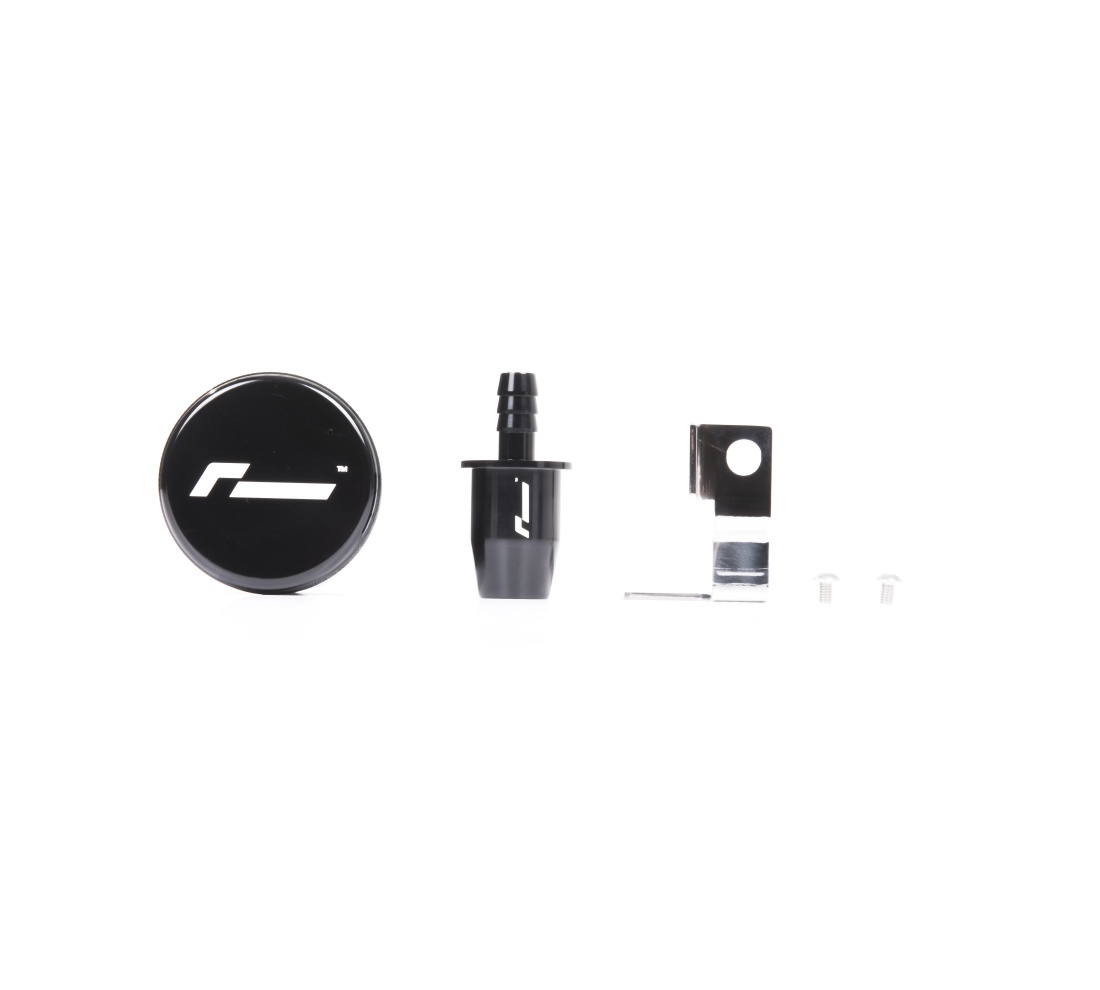

REMOTE WASHER KIT VWR13G700RFK

WHY NOT ADD?

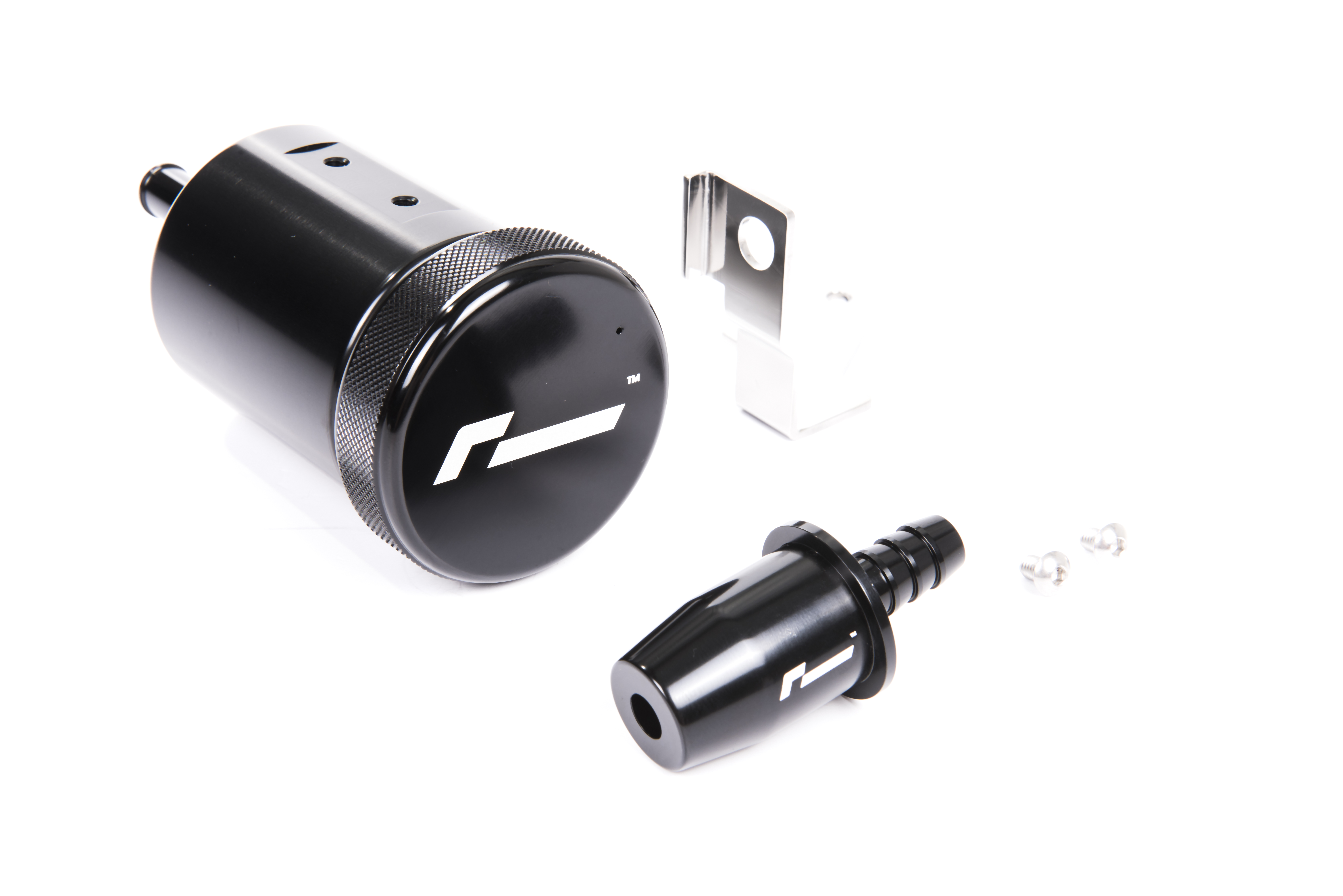

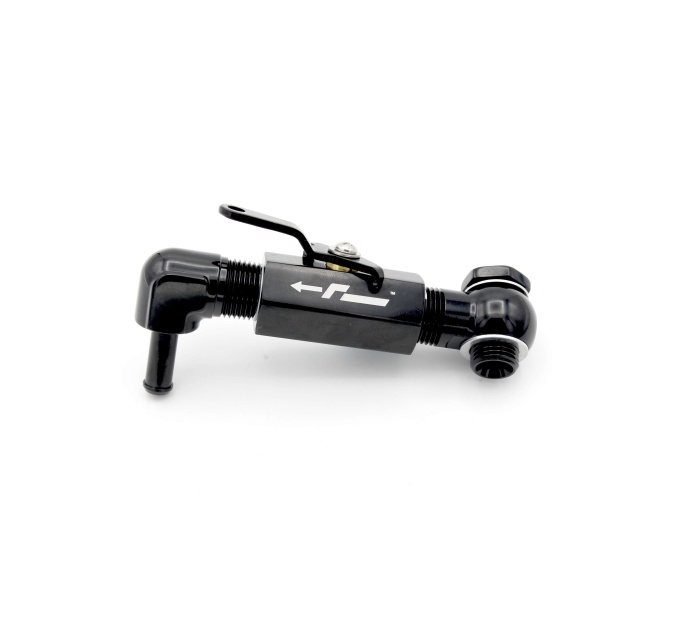

The optional Drain Kit for this Oil Management System is a really simple addition that makes emptying the Oil Catch Can a quick, clean and simple operation.

CATCH CAN DRAIN KIT VWR130006

>>>FITTING GUIDE>>>

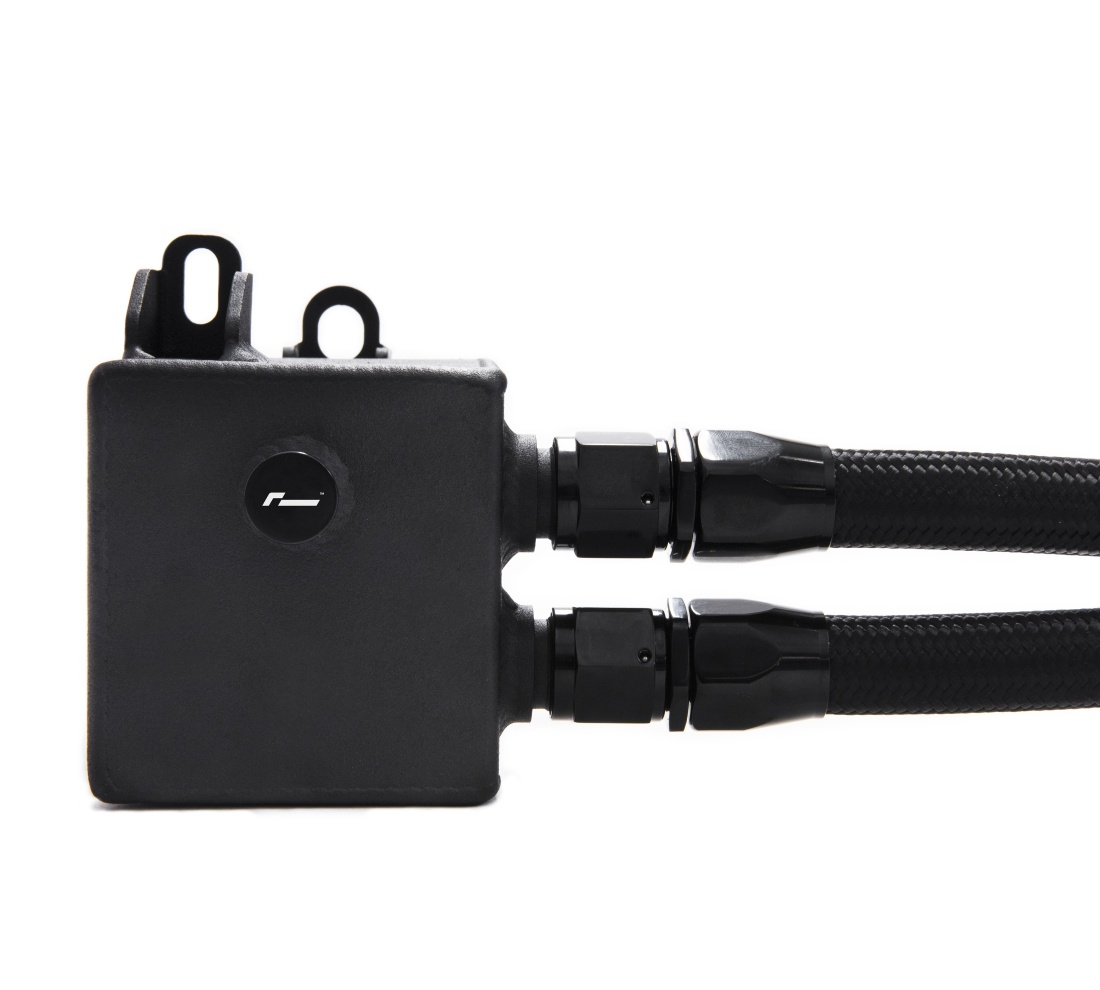

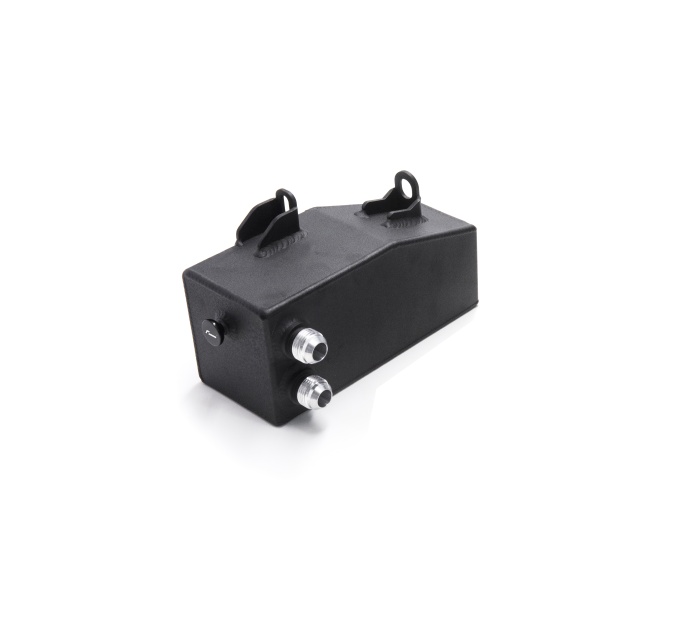

OIL CATCH TANK FEATURES.

Our catch tanks are machine welded for the best possible finish before being coated in our distinct "crinkle black" powder coat. All this is to ensure a Racingline catch tank stands the test of time and retains its looks.

> Easy level measure with our built in dipstick.

> Drain Plug at the base of the tank for easy disposal of excess fluids.

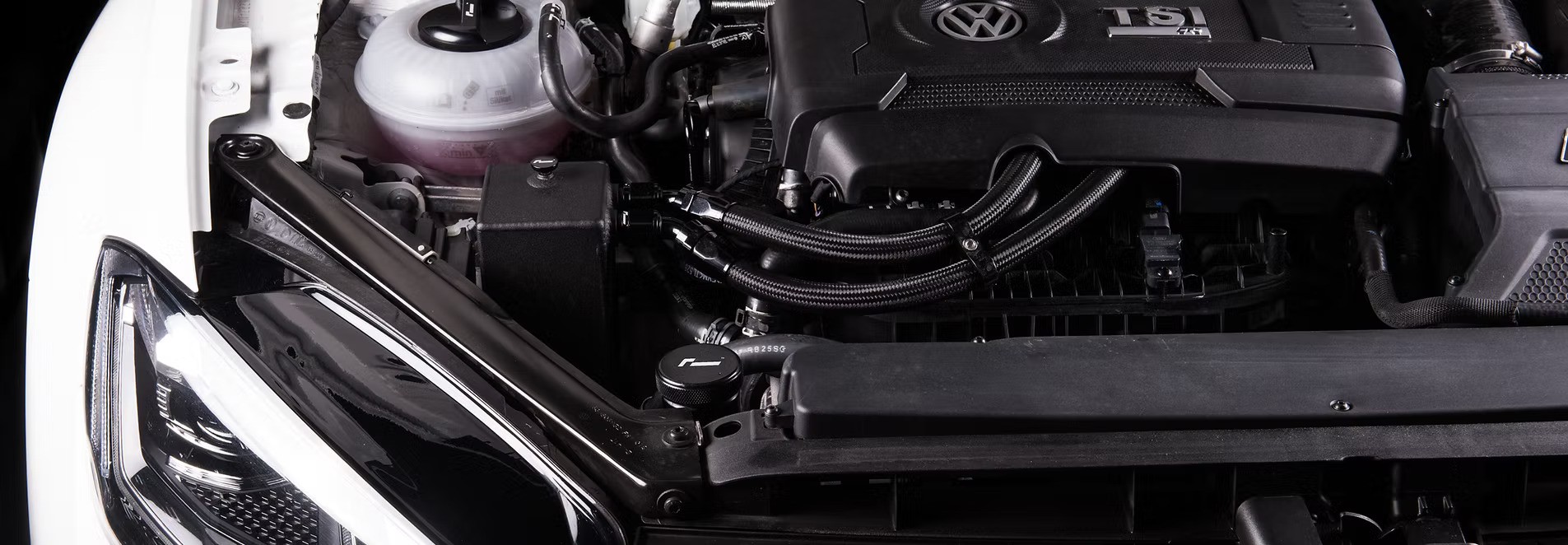

> Our catch tank locates on the side of your engine mount and utilises the original chassis bolt, retaining a true OE appearance.

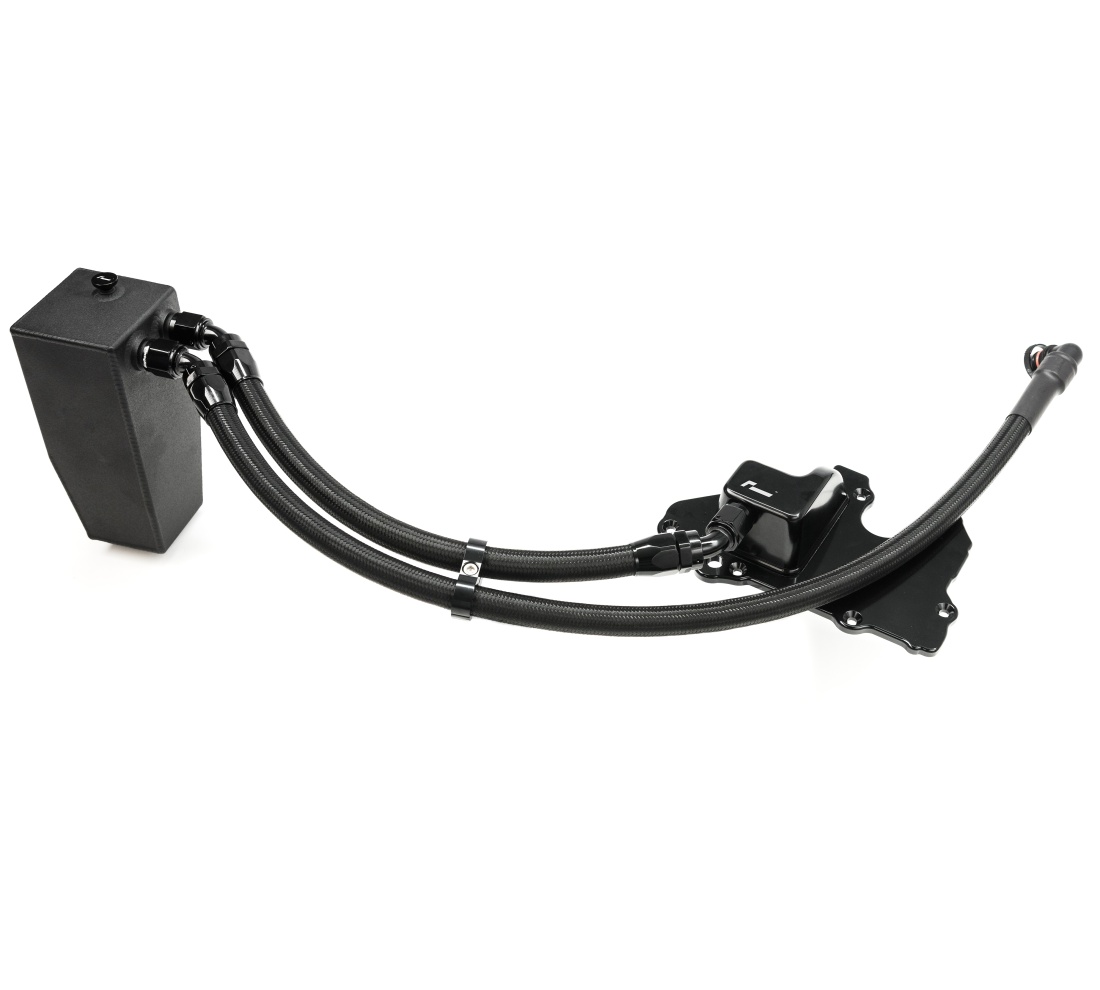

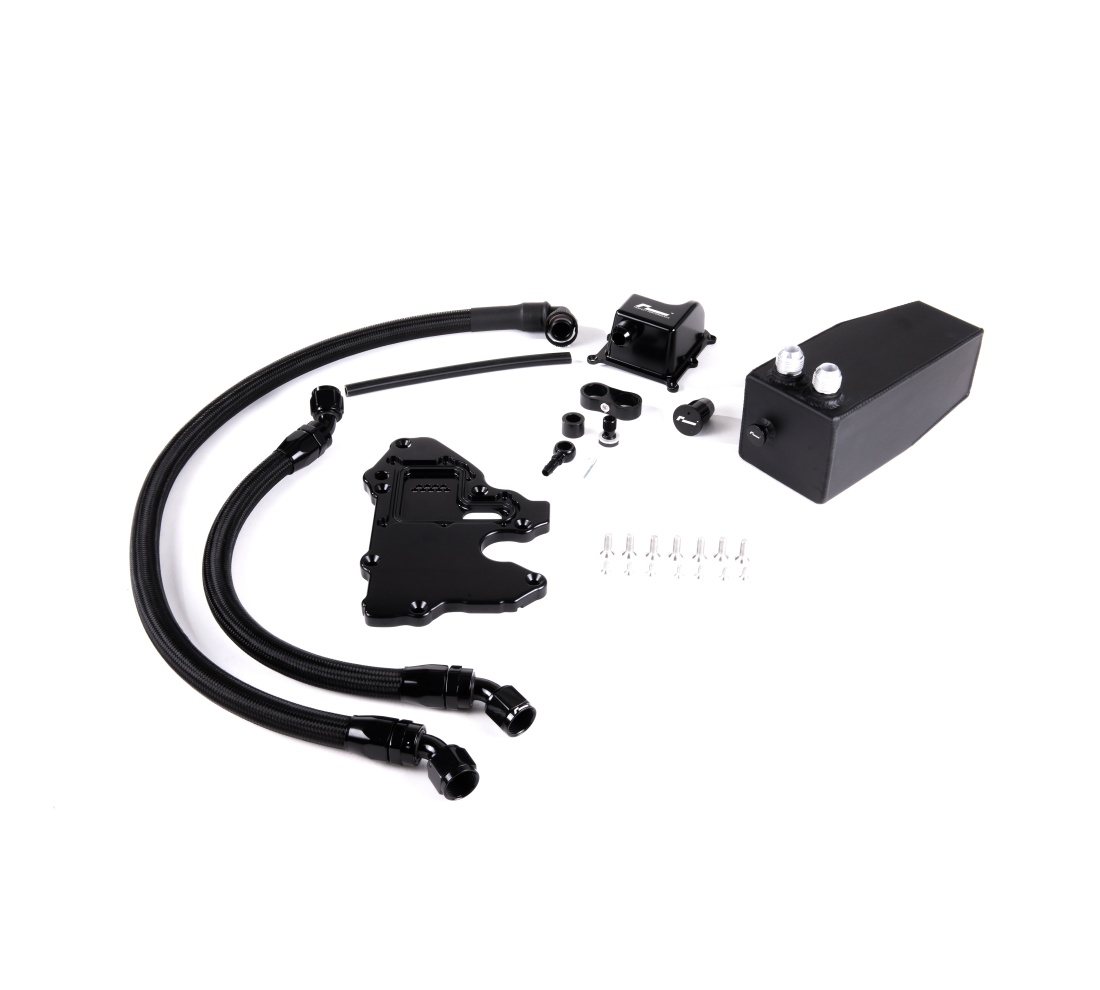

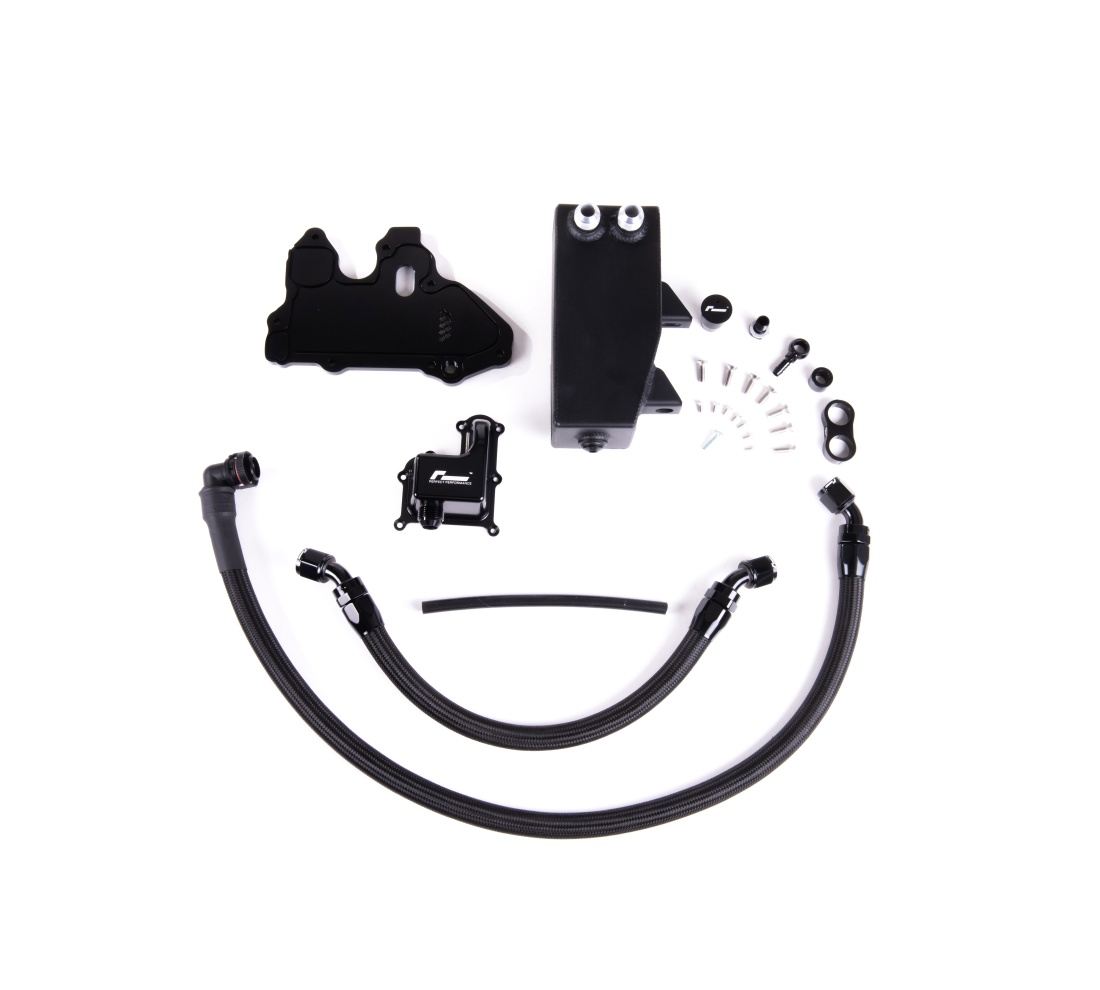

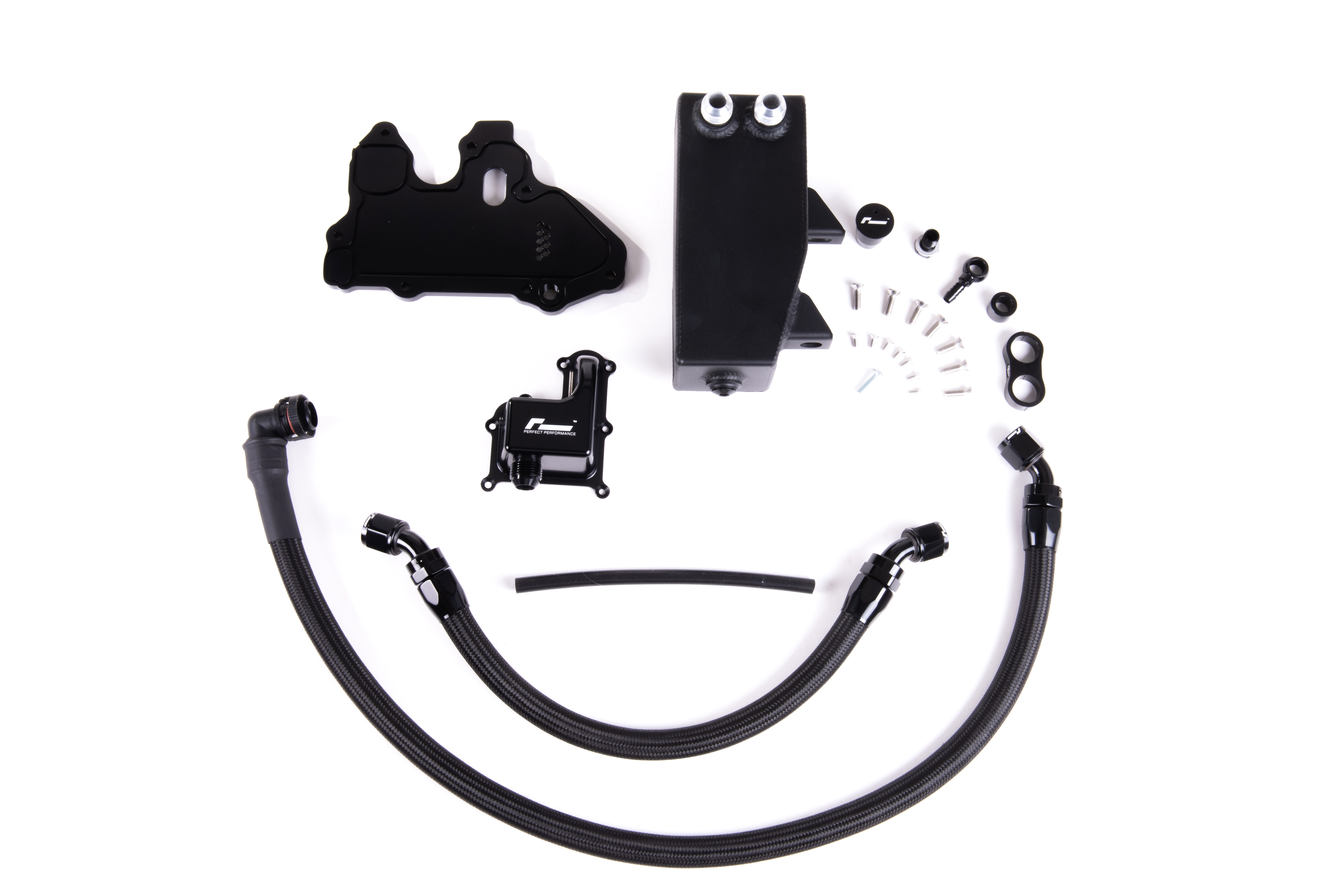

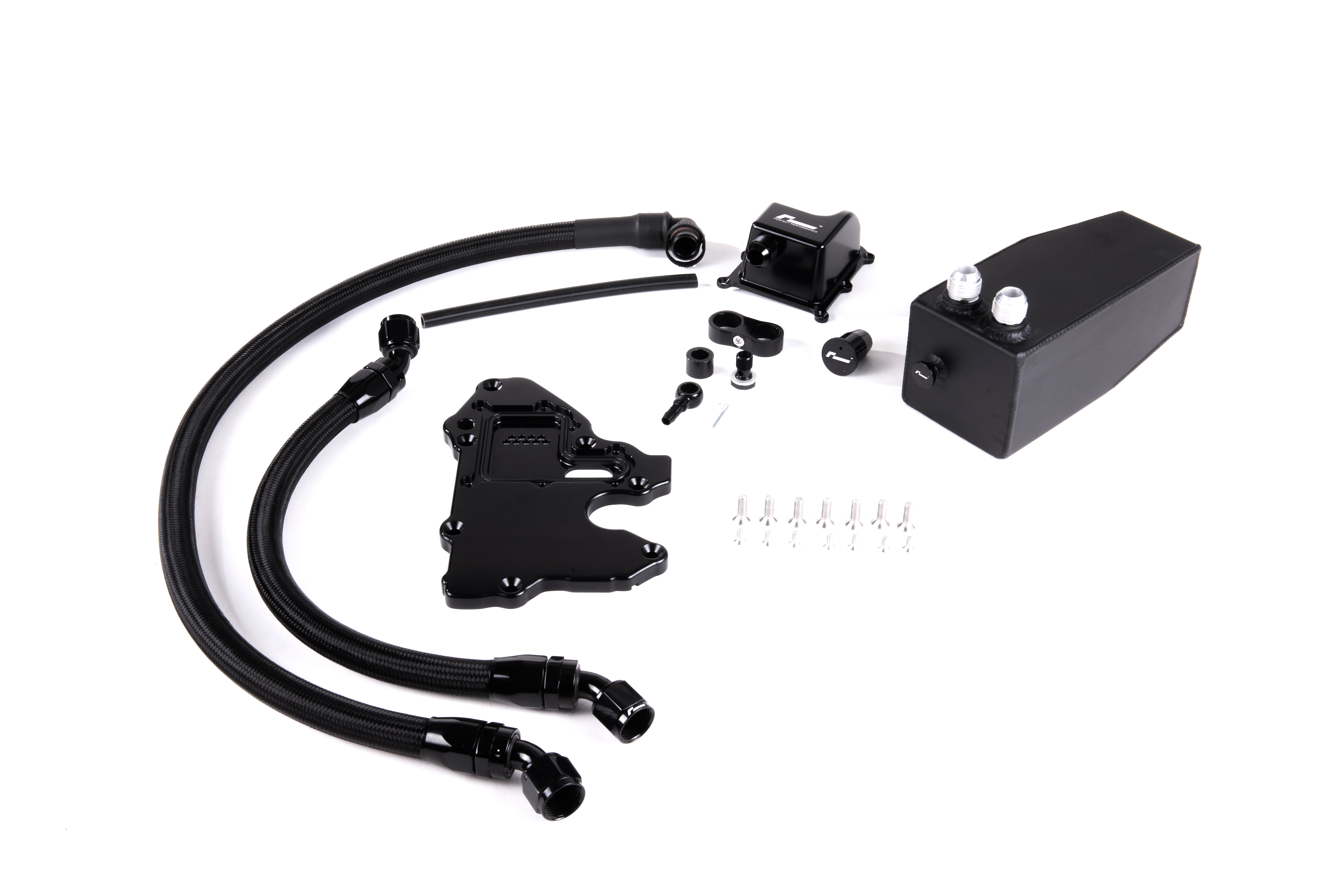

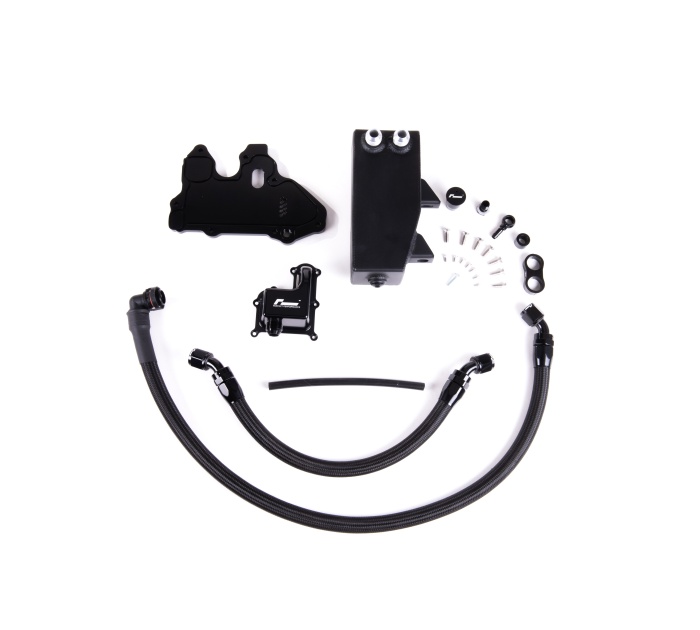

SO WHAT'S IN THE KIT?

> Replacement PCV breather plate

> Baffled breather cap

> Breather hose from cap to catch tank

> Baffled catch tank

> Breather return hose from catch tank to inlet

> Oil catch tank dipstick

> PCV solenoid vent hose & adapter

> Washer blanking plug (R Models only)

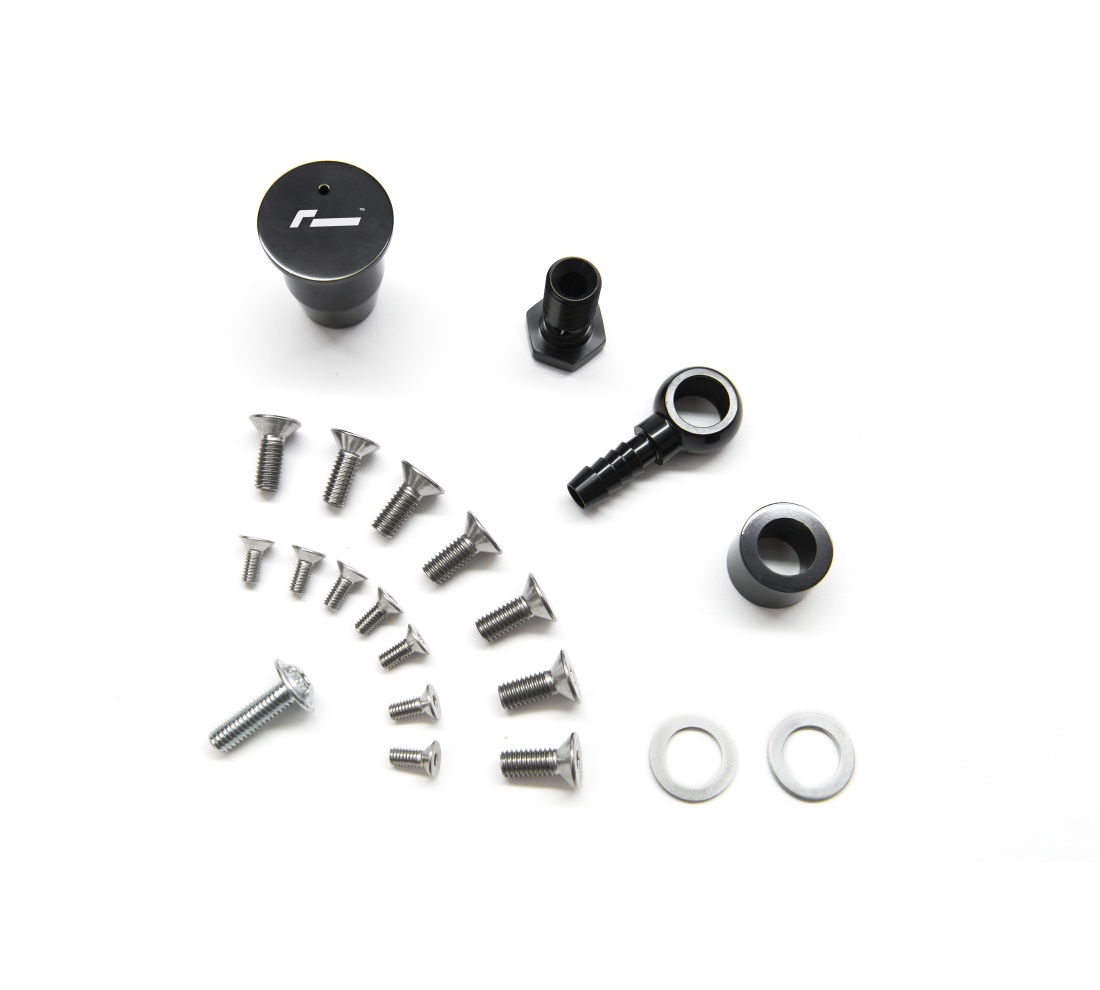

> Fixing kit containing all required bolts, washers and rubber o-ring cord.

CONFIRMED APPLICATIONS

VWR13G700

> VW Golf 7 & 7.5 GTI & Clubsport 2013-2020

> VW Golf 7 & 7.5 R 2013-2020

> VW Golf 7 & 7.5 1.8 TSI 2013-2020

> VW Passat 2.0 TSI B8 2015+

> VW Arteon 2.0 TSI 2017+

> VW T-Roc R 2.0 TSI 2019+

> VW Tiguan II 2.0 TSI 2016+

> VW Jetta / GLI 7 2018+

> Audi S3 8V 2013-2020

> Audi A3 2.0 TSI / 1.8 TSI 8V 2013-2020

> Audi TT 3 8S 2014+

> Audi TTS 2.0 TFSI 8S 2015-2021

> Audi SQ2 2018+

> SEAT Leon III Cupra 5F 2014-2020

> SEAT Leon III 1.8 TSI 5F 2014-2020

> Cupra Ateca 2018+

> Skoda Octavia III vRS 2.0 TSI 5E 2014-2020

> Skoda Superb III 1.8 / 2.0 TSI 3V 2015+

* For 2019 Golf GTI only, there is a new evaporation canister which obstructs the catch can fitment.

                   You will need to purchase Volkswagen part 5Q0133366K to allow fitment.
