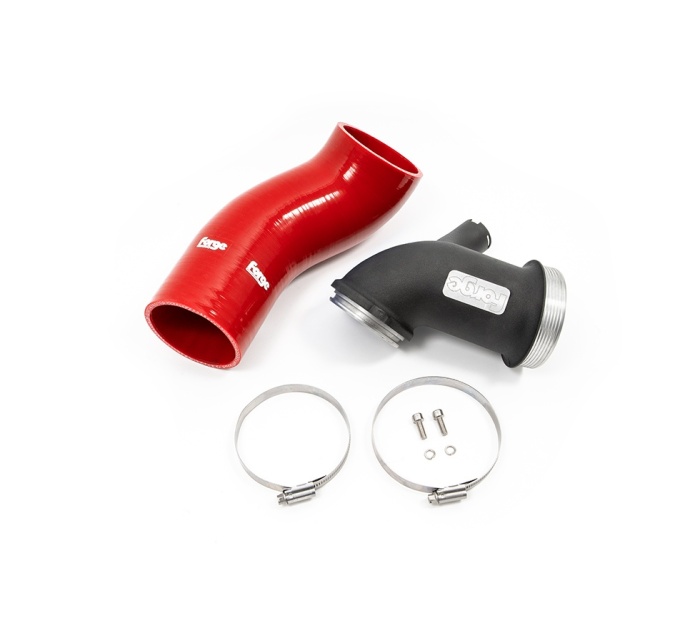

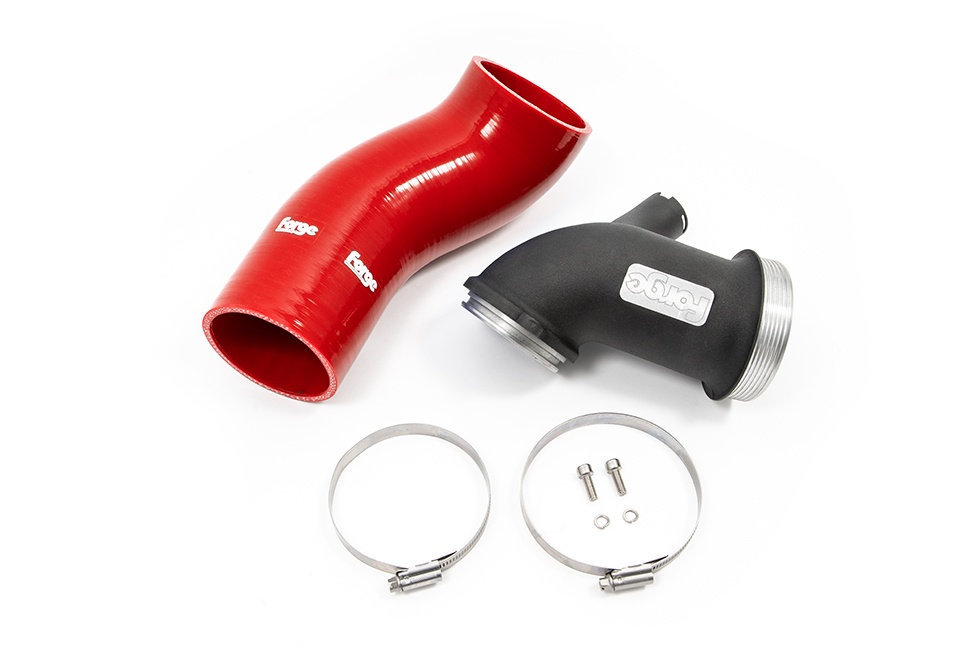

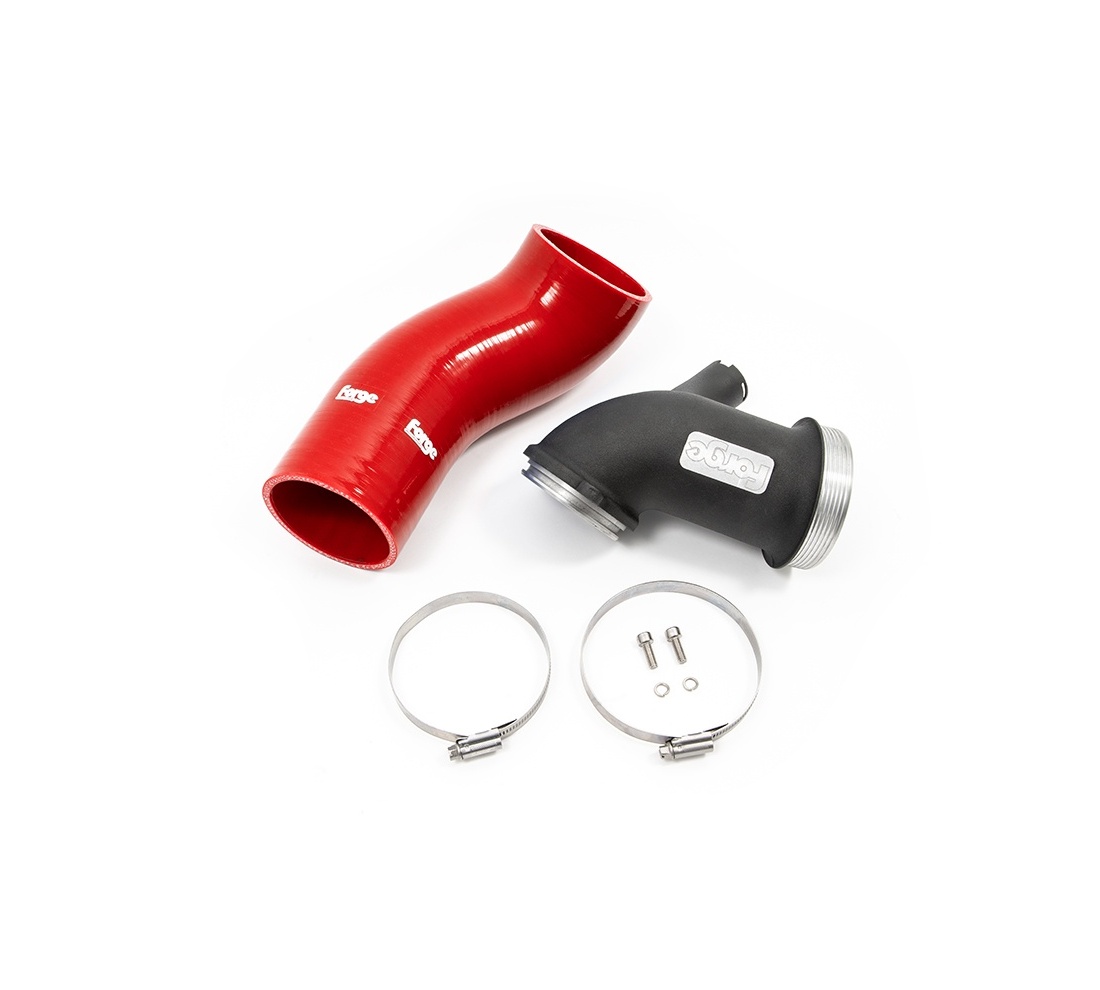

Forge Motorsport High-Flow CNC Turbo Inlet Adaptor

Unlock the maximum breathing capacity of your high-performance engine with this premium CNC-machined billet aluminum turbo inlet adaptor. Specially developed by Forge Motorsport for the latest generation VAG vehicles equipped with the EA888 Gen 4 engine and the larger Continental turbocharger, this component replaces the highly restrictive factory plastic unit. The original factory elbow features an internal design that narrows significantly, causing severe air turbulence and high-velocity choke points right before the air meets the compressor wheel. By expanding the internal diameter and smoothing the transition geometry, this upgrade allows your turbocharger to pull air more efficiently, resulting in sharper throttle response and localized power gains.

Precision Billet Engineering & Material Construction

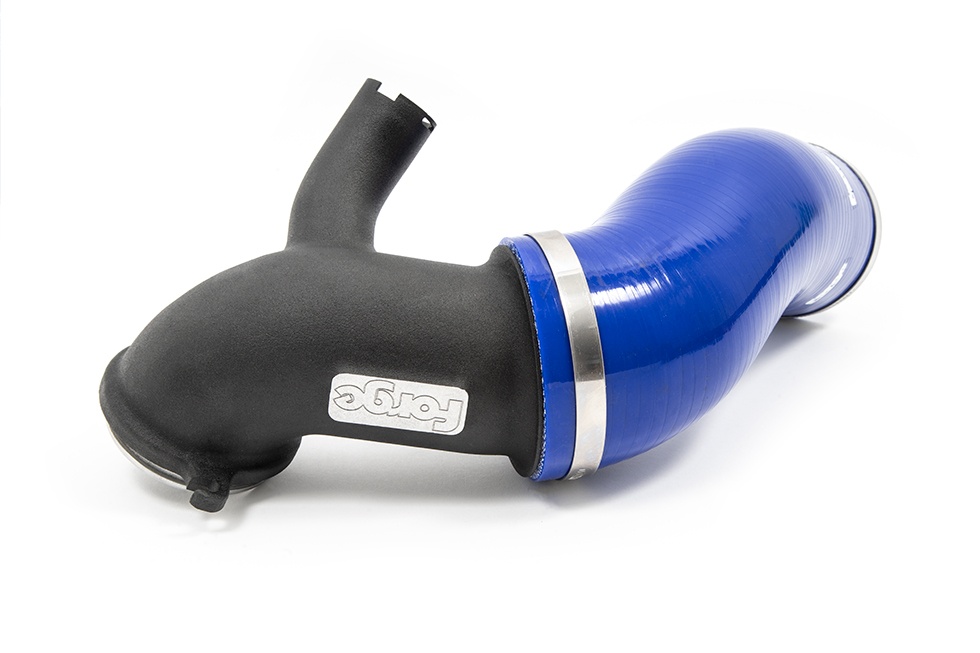

Every single adaptor is precision-engineered in the UK using state-of-the-art multi-axis CNC machinery. Cut from a single solid block of aircraft-grade 6061-T6 structural aluminum billet, this component is built to endure extreme vibrational stress and high thermal cycles without losing its structural shape. To protect against surface oxidation and corrosive salt spray, the adaptor is finished in a durable, sleek gloss black anodized coating. The unit features an optimized internal radius designed to maximize volume capacity while matching the precise entry profile of the Continental turbocharger housing, ensuring a smooth transition across full boundary layers.

O-Ring Sealing Network & Secure Fitment

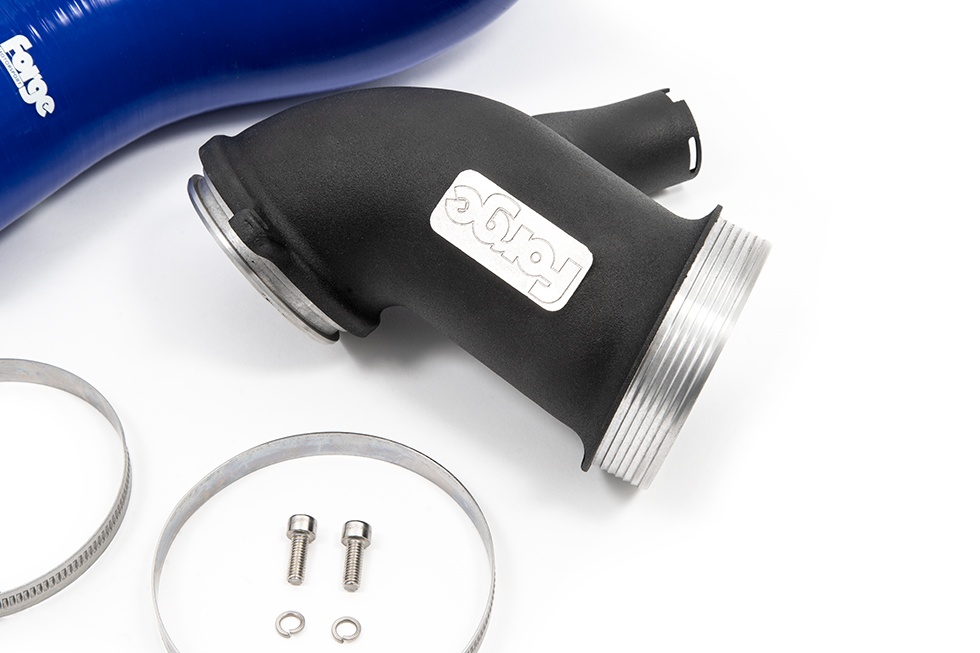

Engineered for a direct drop-in fitment, this high-flow adaptor eliminates the common boost and vacuum leaks associated with plastic aftermarket variations. It features an integrated high-temperature Viton rubber O-ring seal pre-seated into a precision-machined groove. This setup creates an airtight, positive pressure seal directly against the compressor housing face. The installation reuses your original mounting hardware and aligns perfectly with the factory locating pins, requiring no cutting, trimming, or permanent vehicle modifications.

Recommended Performance Enhancements

To maximize your vehicle’s total induction volume and overall throttle response, we highly recommend fitting these complementary hardware upgrades in conjunction with your new turbo inlet adaptor:

Atmospheric Dump Valve for Audi, Cupra, Seat, Skoda, & VW 2.0 TSI (E-DV) - FMEDV106A

High Flow Performance Cold Air Induction Kit - FMINDK40

Product Media & Structural Galleries



Technical Support & Installation Guides

Before beginning your modification project, please review the official technical guidelines to ensure an optimal setup process:

Prefer to leave the heavy lifting to the professionals? Our fully equipped regional performance center provides comprehensive workshop services carried out by trained brand specialists.

Vehicle Compatibility & Verified Applications

This product has been thoroughly cross-referenced and certified to fit the following specific vehicle configurations and engine variants:
