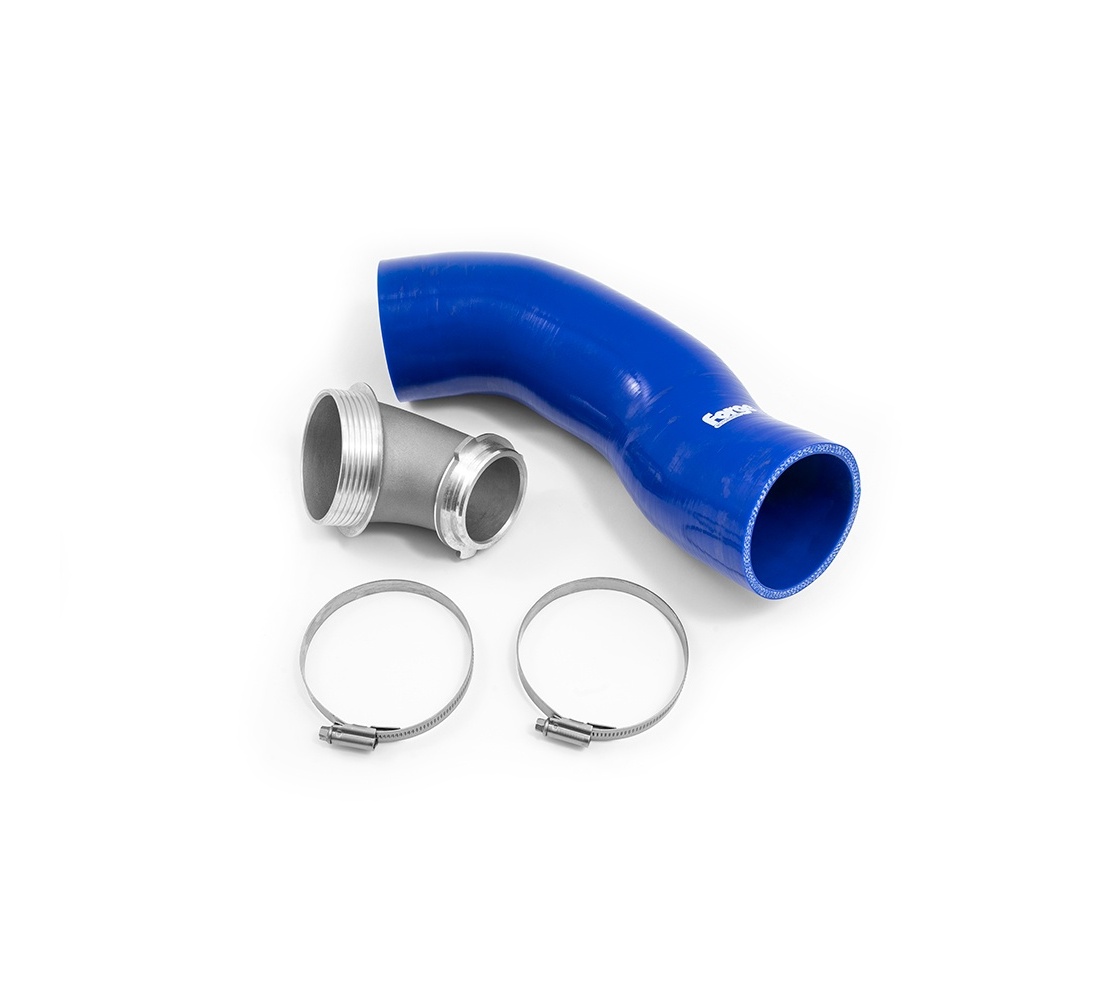

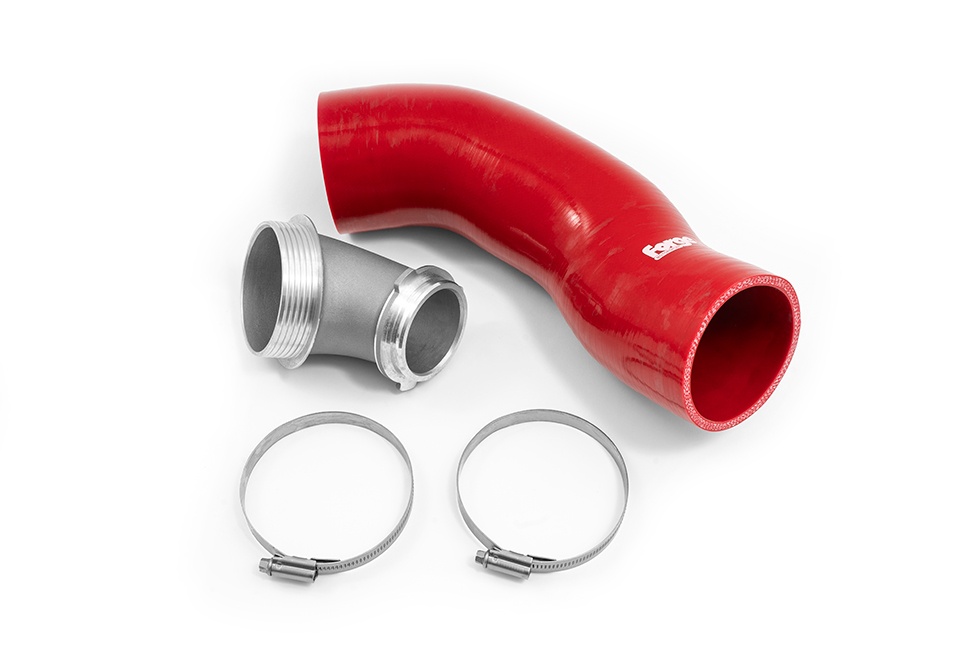

Forge Motorsport Garrett Turbo High-Flow Inlet Adaptor

Optimize the primary induction line of your 245hp EA888 Gen 4 engine with the Forge Motorsport high-flow turbo inlet adaptor. Engineered directly as a high-performance replacement for the restrictive factory plastic elbow, this product fixes the aerodynamic limitations of original VAG equipment. The stock factory inlet has a tight internal radius and stepped joints that cause severe air turbulence, creating an air delivery bottleneck under load. The Forge upgrade features a smooth internal bore profile that expands the induction path, helping the turbocharger draw air more efficiently for faster throttle response and sustained power gains.

Advanced CNC Manufacturing & Protective Coatings

This critical induction component is manufactured in-house using advanced multi-axis CNC billet machinery. Cut from structural 6061-T6 aircraft-grade aluminum, this solid part completely eliminates the flexing, cracking, and fatigue common to plastic components over time. To ensure long-lasting durability under extreme under-bonnet heat cycles, each adaptor is finished in a high-gloss black anodized surface coating. This finish protects the aluminum from oxidation while giving the engine bay a clean appearance.

Airtight Dual O-Ring Performance Engineering

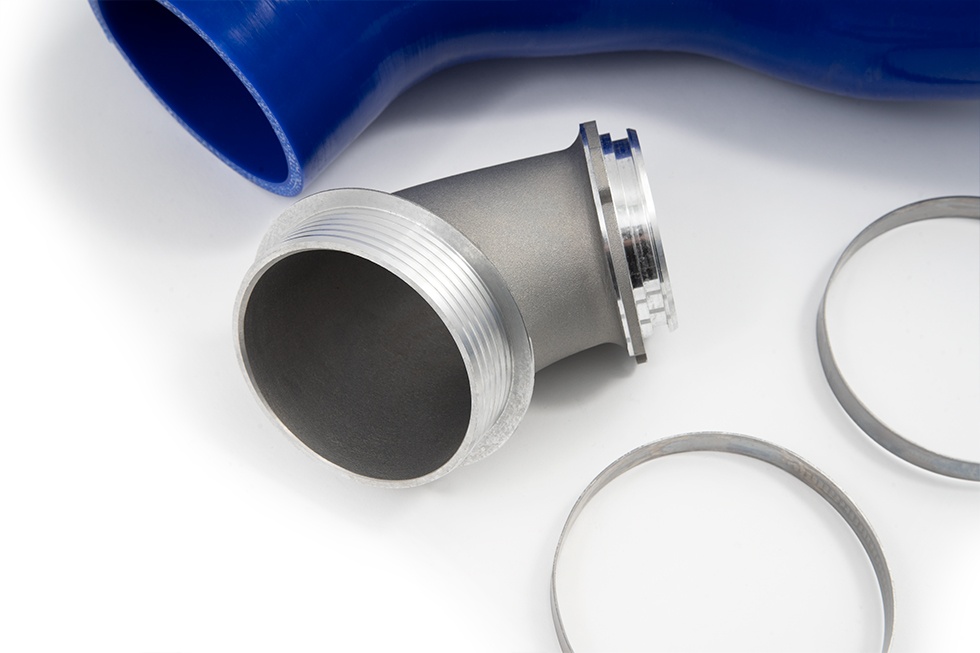

To eliminate any potential for unmetered air draw or vacuum leaks, this high-flow adaptor uses an advanced mechanical sealing face. It features an integrated high-temperature Viton O-ring seated inside a precision CNC-machined groove. This design provides an airtight seal against the turbocharger housing face, maintaining internal pressure consistency even on vehicles running aggressive Stage 1 or Stage 2 engine management calibrations.

Recommended Induction Addons

To completely optimize your vehicle’s intake system and maximize airflow to the turbocharger, consider adding these complementary upgrades:

Atmospheric Dump Valve for Audi, Cupra, Seat, Skoda, & VW 2.0 TSI (E-DV) - FMEDV106A

Carbon Fibre Intake Induction System Kit - FMINDK40

Product Quality & Technical Galleries



Technical Support & Installation Bookings

Ensure a clean installation by following the detailed step-by-step mechanical guide provided by Forge Motorsport:

Want a guaranteed leak-free seal and professional installation for your vehicle? Schedule an appointment at our advanced service center.

Vehicle Compatibility & Application Directory

This premium Garrett-turbocharged inlet upgrade is certified to fit the following specific vehicle applications:
